Industrial 4.5" (115mm) Hot-Pressed Mesh Turbo Diamond Blade for Porcelain
Premium X-Mesh Turbo Diamond Tile Blade (Chip-Free Dry Cut) – Bulk Supply
Quick Specifications
| Product Name | OEM 4.5" Hot-Pressed Mesh Turbo Diamond Blade for Porcelain |
|---|---|
| Tool Type | Mesh Turbo Diamond Saw Blade (X-Teeth) |
| Manufacturing Process | Hot-Pressed Sintered (Premium Grade, High Safety) |
| Dimensions | 115mm (4.5") Dia. x 22.23mm (7/8") Arbor |
| Blade Design | X-Mesh / Net Turbo Rim (Ultra-thin, fast cooling, chip-free) |
| Cutting Technology | Dry and Wet Cutting (Optimized for dry use on hard tiles) |
| Target Application | Porcelain Tile, Ceramic, Vitrified Brick, Dekton, Sintered Stone |
| Brand Name | Xiaoman Tools |
| Manufacturer | Shanghai Daoge Xiaoman Tools Co., Ltd. |
| Customized Support | 100% OEM/ODM (Custom Paint, Laser Logo Etching, Color Box) |
- Factory Direct Pricing
- Strict Standard QC
- Support OEM / Custom Packaging
Want to know the MOQ and latest price?
Product Details

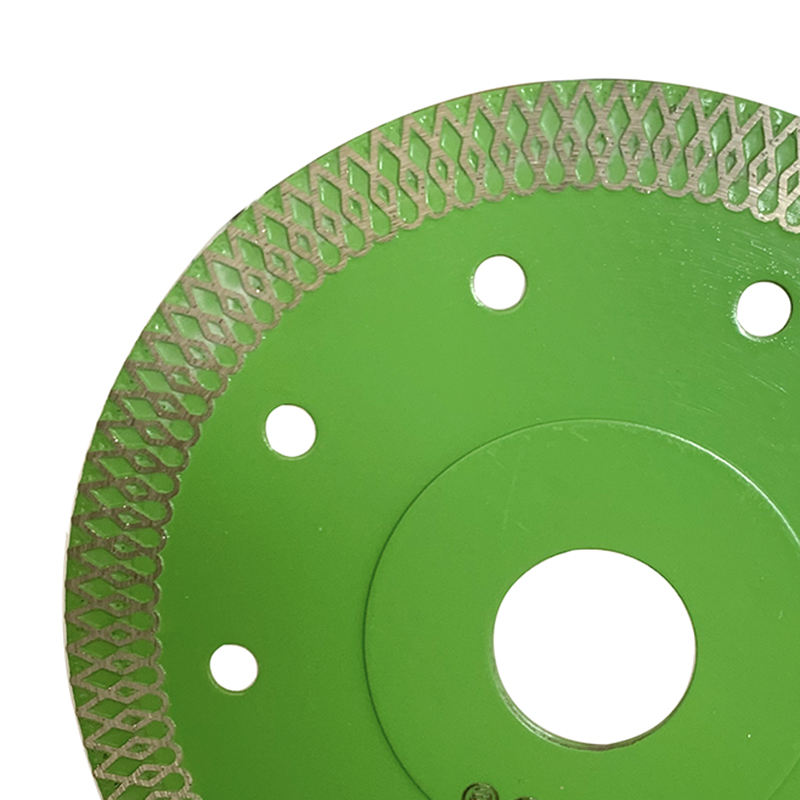

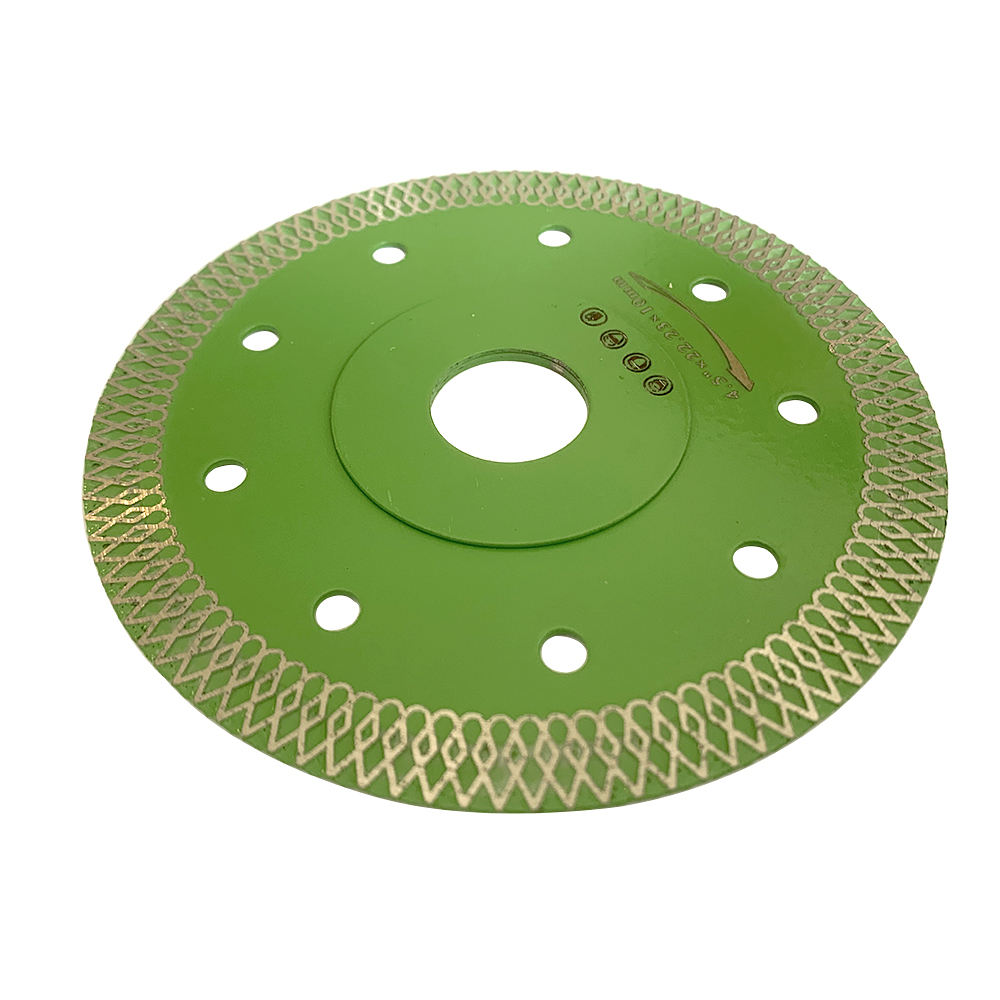

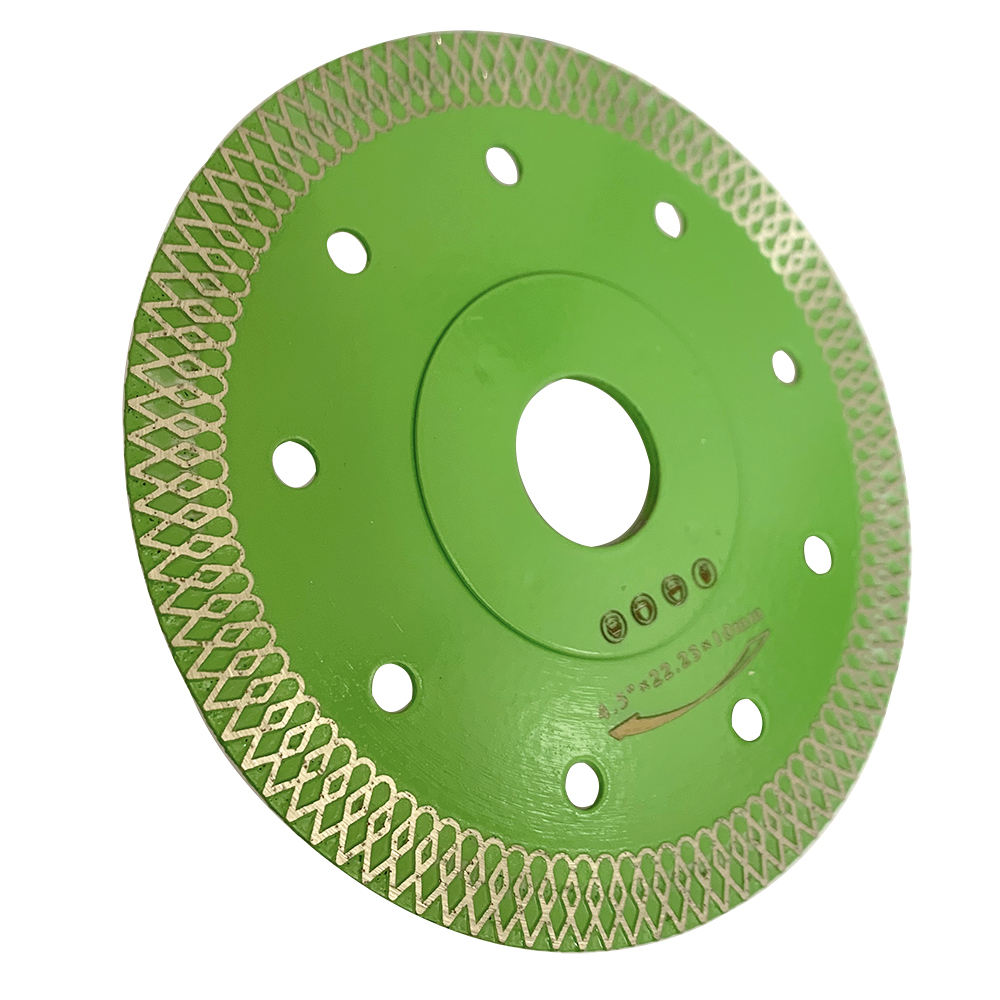

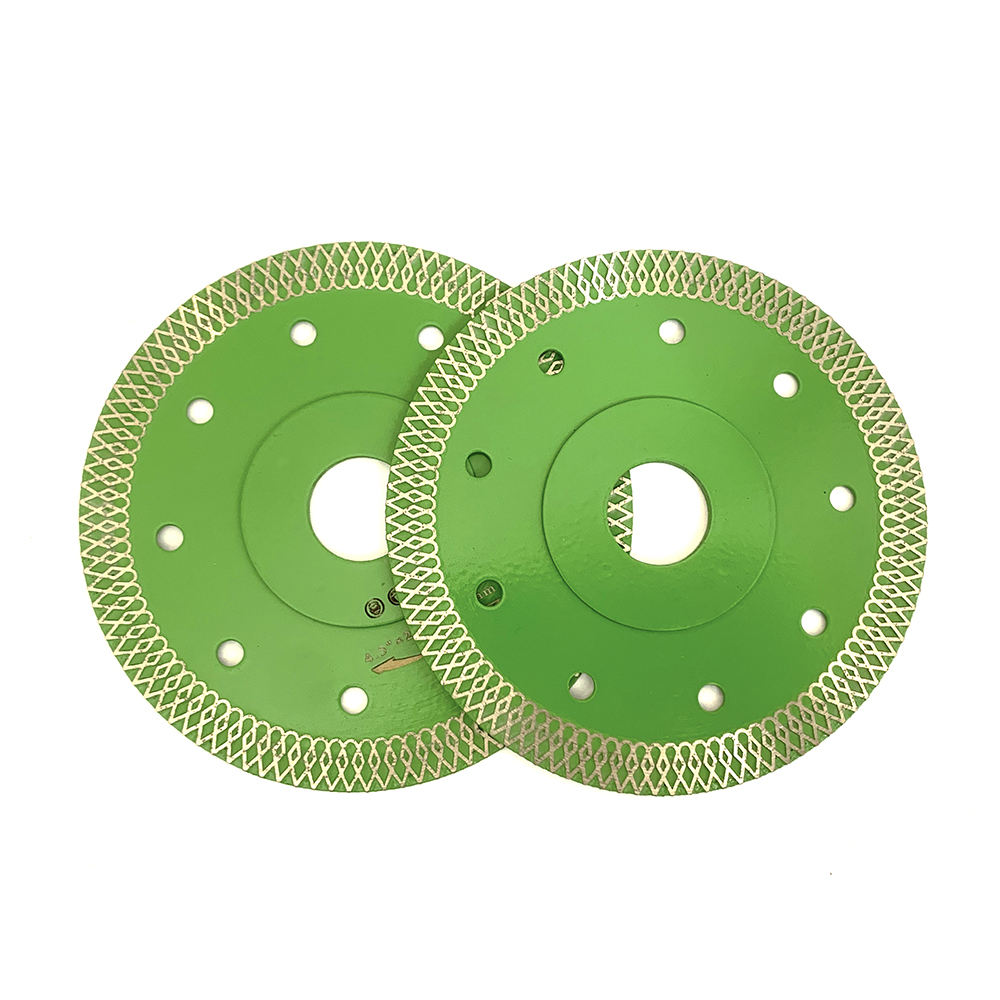

Industrial Hot-Pressed Mesh Turbo Diamond Blade (4.5")
The Ultimate Chip-Free Cutting Solution for Hard Porcelain and Sintered Stone
As modern architecture shifts towards ultra-hard porcelain tiles, Dekton, and sintered stone, professional tile installers demand tooling that keeps up. The Mesh Turbo Diamond Blades from Shanghai Daoge Xiaoman Tools Co., Ltd. represent the pinnacle of ceramic cutting technology. Featuring an advanced "X-Teeth" or mesh-patterned rim, this blade dramatically reduces cutting friction, evacuates fine dust instantly, and actively cools the steel core. Combined with a premium Hot-Pressed Sintered manufacturing process and an ultra-thin kerf, it delivers lightning-fast, glass-smooth dry cuts without chipping expensive tiles. Secure a highly profitable segment of the masonry market by sourcing these premium consumables directly from our factory, complete with your custom brand laser etching and retail-ready packaging.
Key Technical Advantages
- Advanced Mesh Turbo Rim (X-Teeth): The interlaced diamond mesh design minimizes surface contact area. This prevents the blade from overheating and glazing over, ensuring a flawlessly clean, chip-free edge on the hardest ceramics.
- Hot-Pressed Sintered Matrix: Manufactured under extreme heat and pressure, the diamond grit is tightly bound to the matrix. This guarantees exceptional blade life and maximum operator safety, far outperforming cheap cold-pressed alternatives.
- Ultra-Thin Kerf: The precision thin profile cuts with minimal resistance, saving material and making it incredibly fast and effortless to maneuver through dense porcelain tiles.
- Reinforced Hub Design: The thicker central flange area provides essential stability to the ultra-thin rim, preventing the blade from flexing or wandering during straight cuts on an angle grinder.
- Direct Manufacturer Value: Elevate your wholesale catalog. We provide 100% OEM customization, allowing you to choose specific core paint colors, arbor sizes, and apply your exclusive company logo to dominate your local market.
Technical Specifications
| Manufacturer: | Shanghai Daoge Xiaoman Tools Co., Ltd. |
| Tool Type: | Mesh Turbo / X-Teeth Diamond Blade |
| Diameter: | 115mm (4.5 inch) |
| Arbor Size: | 22.23mm (7/8") standard |
| Manufacturing Process: | Hot-Pressed Sintered |
| Target Applications: | Hard Porcelain, Ceramic Tile, Sintered Stone |
| OEM Service: | Active (White-Label, Custom Laser Branding) |
