Metal Drill Bits
Indexable U-Drill (SP/WC Insert Type)
U Drill Bit Steel Small Diameter 2D/3D/4D/5D SP/SO AlTin Coated ODM/OEM CNC Indexable Cutter
Quick Specifications
| coating | AlTin |
|---|---|
| material | H13 |
| drilling depth | 2D/3D/4D/5D/6D |
| Material Quality | Premium H13 / 42CrMo Tool Steel Body |
| Applicable Equipment | CNC Machine/Drilling Machine |
| Feature | High hardness, High elasticity. |
| Application | Drill hole |
| Customized | OBM/ODM/OEM |
| Suitable For | Processing Tool Steel, Aviation High Hardness Materials, etc |
| Shank Type | Flanged Weldon Shank |
- Factory Direct Pricing
- Strict Standard QC
- Support OEM / Custom Packaging
Want to know the MOQ and latest price?
Product Details

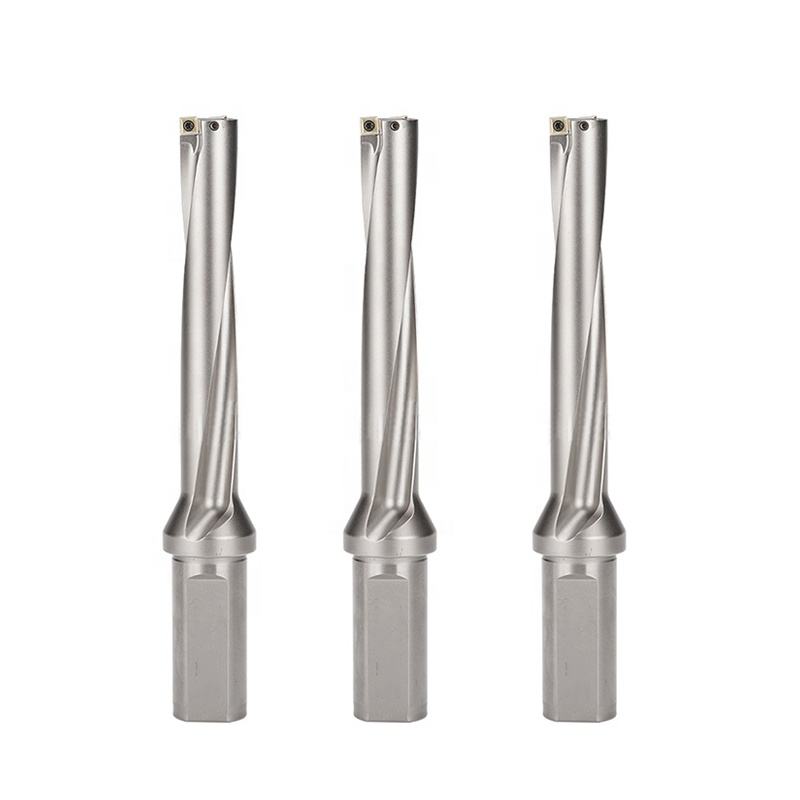

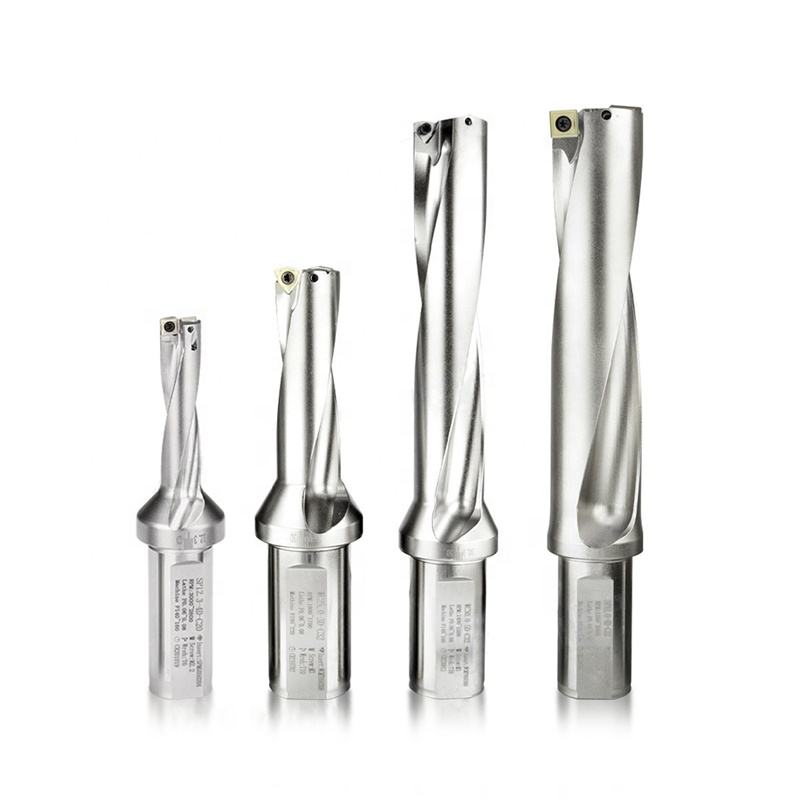

High-Performance Indexable U-Drills (SP & WC Insert Types)
Maximize Hole-Making Efficiency on CNC Lathes and Mills
Revolutionize your drilling operations with Xiaoman Tools' premium Indexable U-Drills. Designed to drill directly from solid without a pilot hole, these tools drastically reduce cycle times. By utilizing replaceable carbide inserts, you eliminate the need for costly tool regrinding, ensuring continuous, high-speed production with maximum cost-efficiency.
Key Technical Advantages
- Premium Tool Steel Body: Forged from high-grade H13 / 42CrMo alloy steel. The drill body undergoes special heat treatment to provide exceptional hardness, high elasticity, and superior vibration resistance during heavy interrupted cuts.

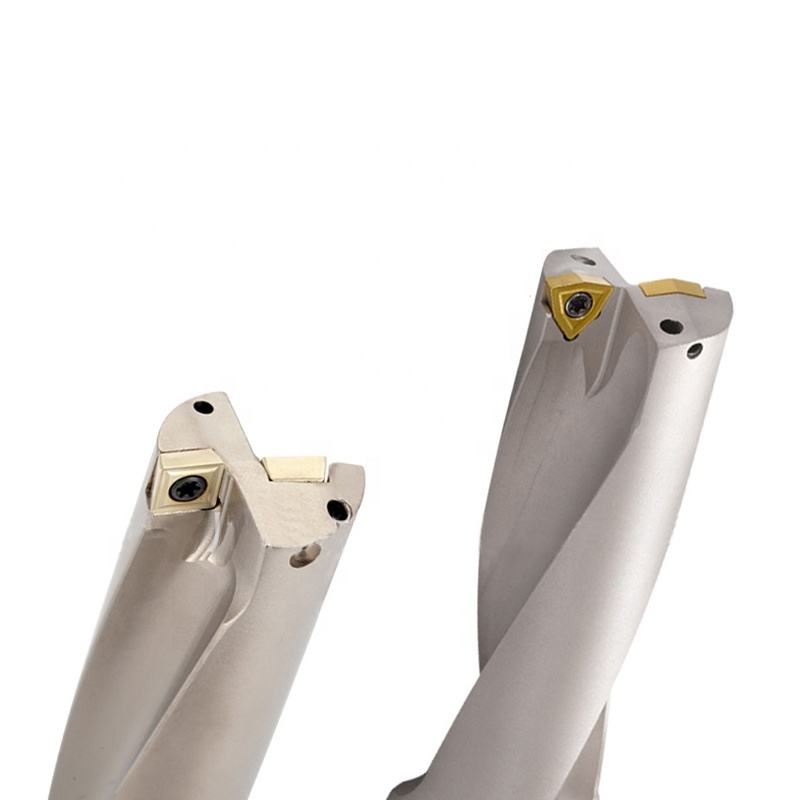

- Dual Insert Pocket Designs: Available in both SP (Square) and WC (Trigon) insert configurations, allowing you to choose the perfect geometry for your specific material and chip-breaking requirements.
- Optimized Internal Coolant (Through-Coolant): Precision-engineered coolant channels deliver high-pressure fluid directly to the cutting edge. This critical feature flushes chips instantly and protects the inserts from thermal shock.

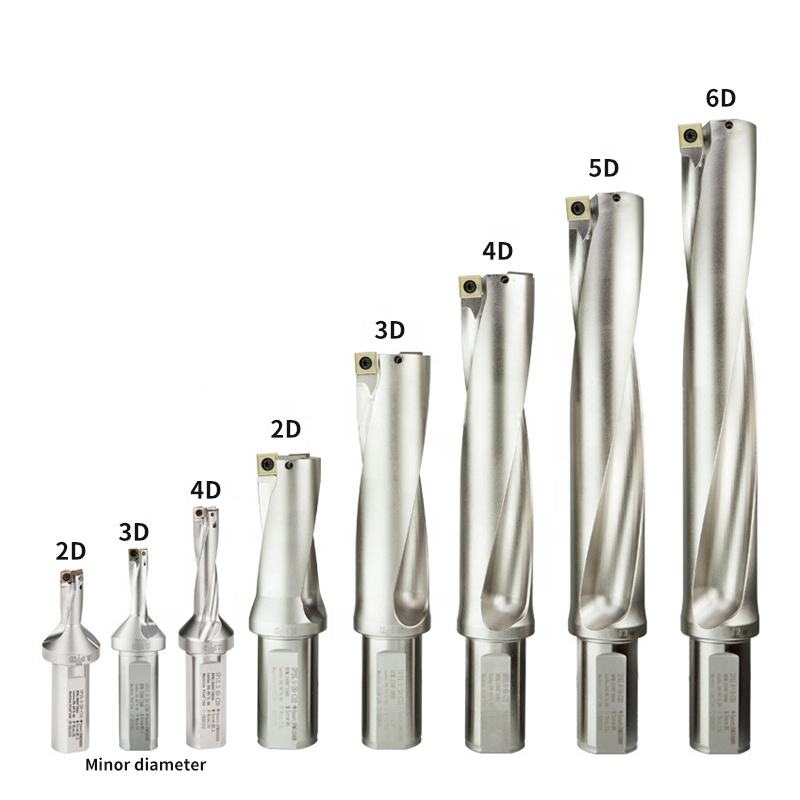

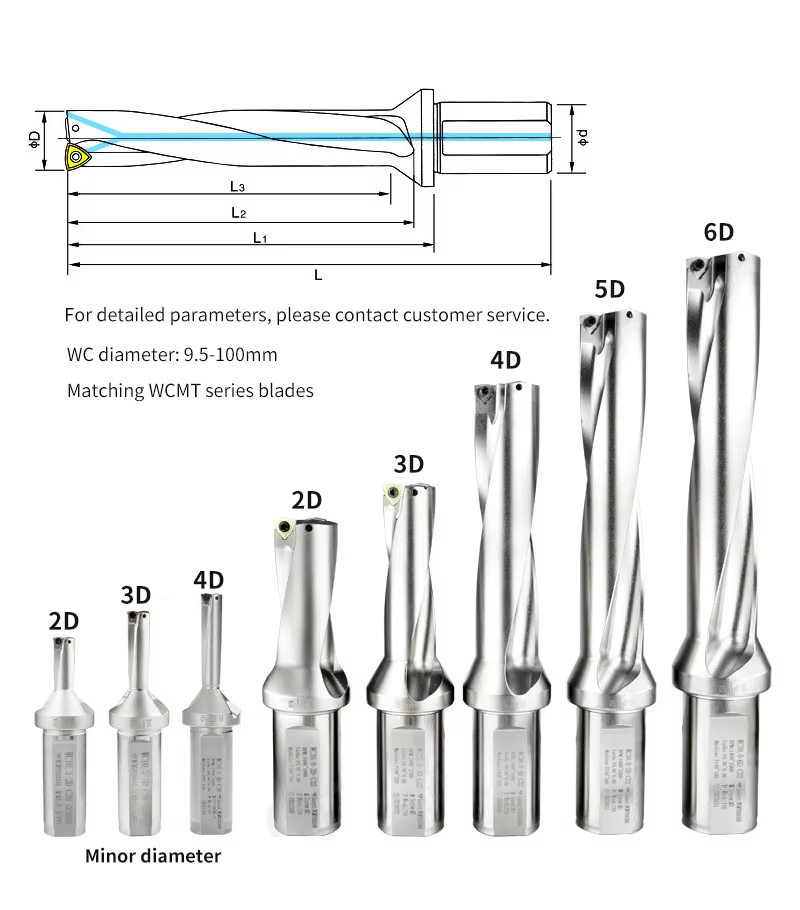

- Comprehensive Depth Range: Stocked in a full range of length-to-diameter ratios: 2D, 3D, 4D, 5D, and extreme 6D depths, covering all your manufacturing needs.
Technical Specifications
| Brand Name: | Xiaoman Tools (OEM/ODM Available) |
| Product Name: | Indexable U-Drill (Fast Drill) |
| Insert Compatibility: | SPMG / WCMX Carbide Inserts |
| Body Material: | Premium H13 / 42CrMo Tool Steel |
| Drilling Depth (L/D): | 2D / 3D / 4D / 5D / 6D |
| Shank Type: | Flanged Weldon Shank (Side Lock) |
| Target Materials: | Carbon Steel, Alloy Steel, Tool Steel, Cast Iron, and Aviation Hard Materials. |
| Applicable Equipment: | CNC Lathes, Machining Centers, Radial Drilling Machines |
* Note: This product listing is for the U-Drill tool body only. Matching carbide inserts (SPMG/WCMX) are sold separately. Please visit our CNC Inserts section to complete your tooling package.
