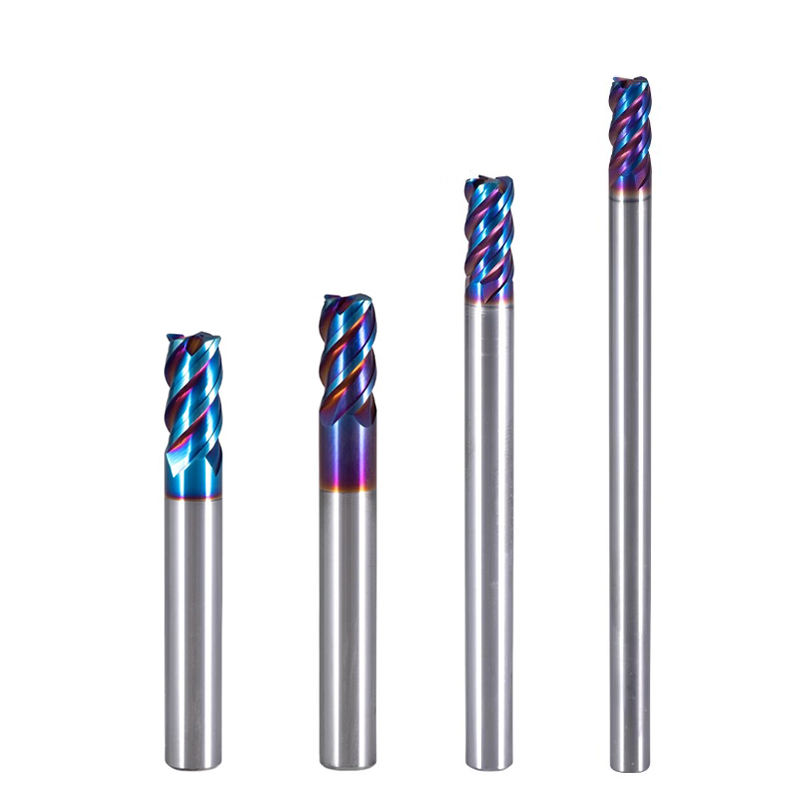

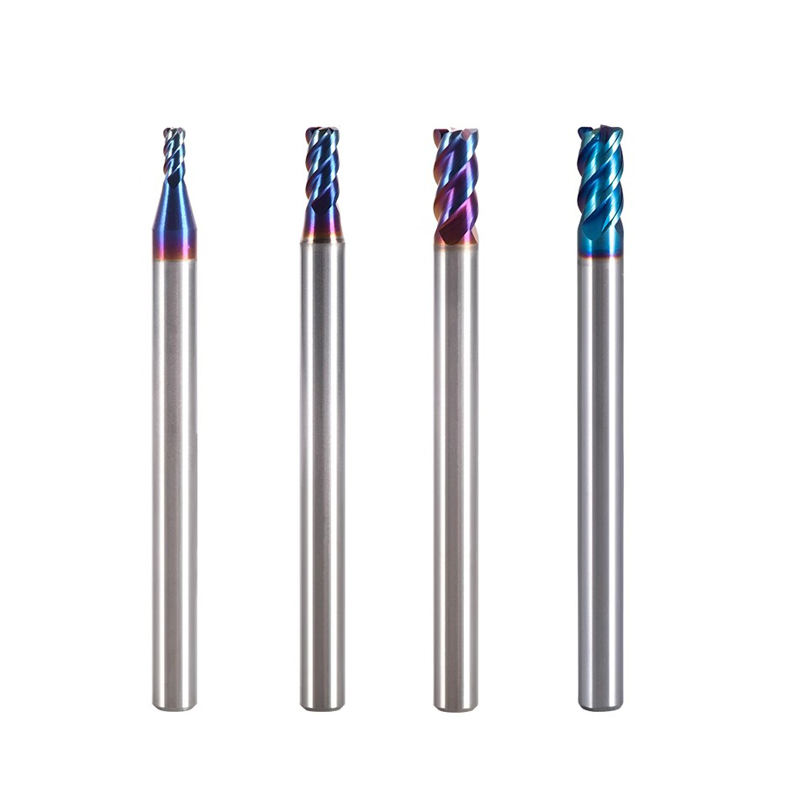

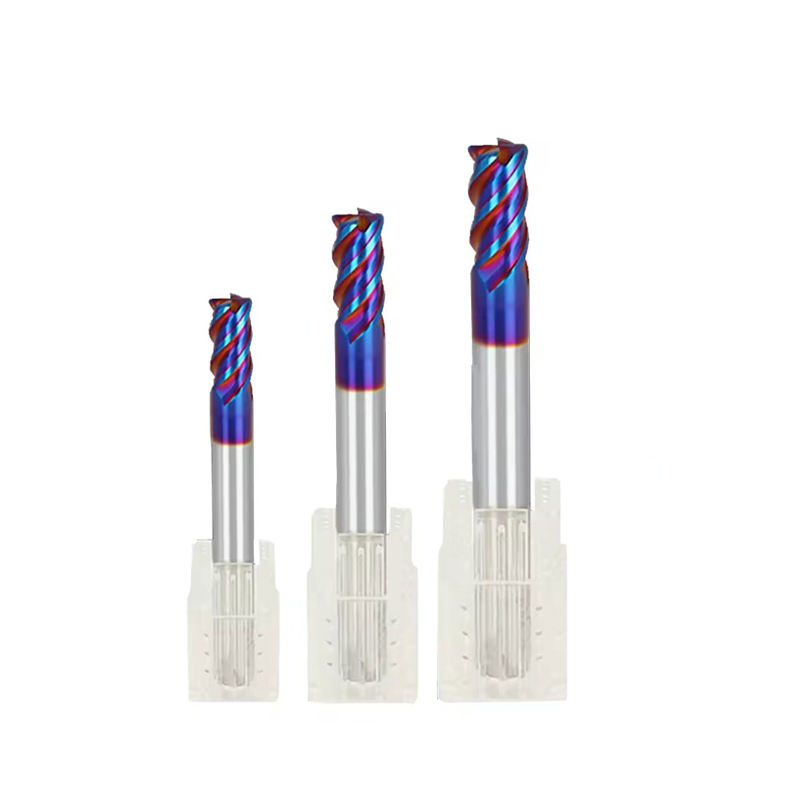

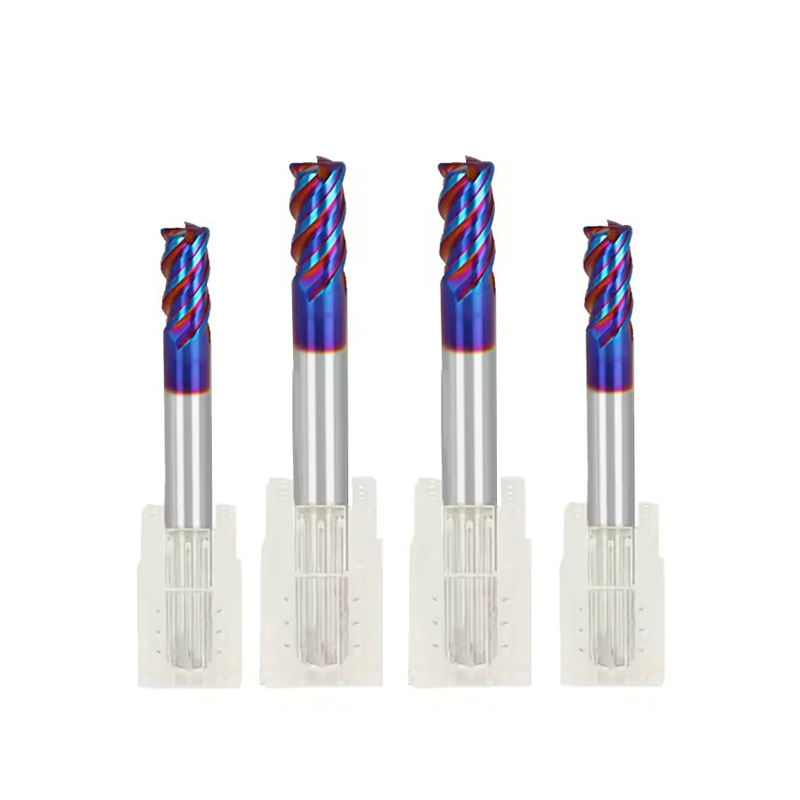

Industrial HRC65 Solid Carbide Corner Radius End Mill – Blue Nano, 4 Flute
Premium Blue Nano Carbide End Mill (Corner Radius) for HRC65 Mold Steel – OEM
Quick Specifications
| Product Name | OEM HRC65 Solid Carbide Corner Radius End Mill (Blue Nano Coated) |
|---|---|
| Milling Cutter Type | Corner Radius End Mill (Bull Nose) |
| Material | Premium Solid Tungsten Steel (Solid Carbide) |
| Hardness Rating | HRC65 (For High Hardness Materials) |
| Coating | Advanced Blue Nano Coating |
| Flutes | 4 Flutes |
| Helix Angle | 45° (Optimized for High-Speed Cutting) |

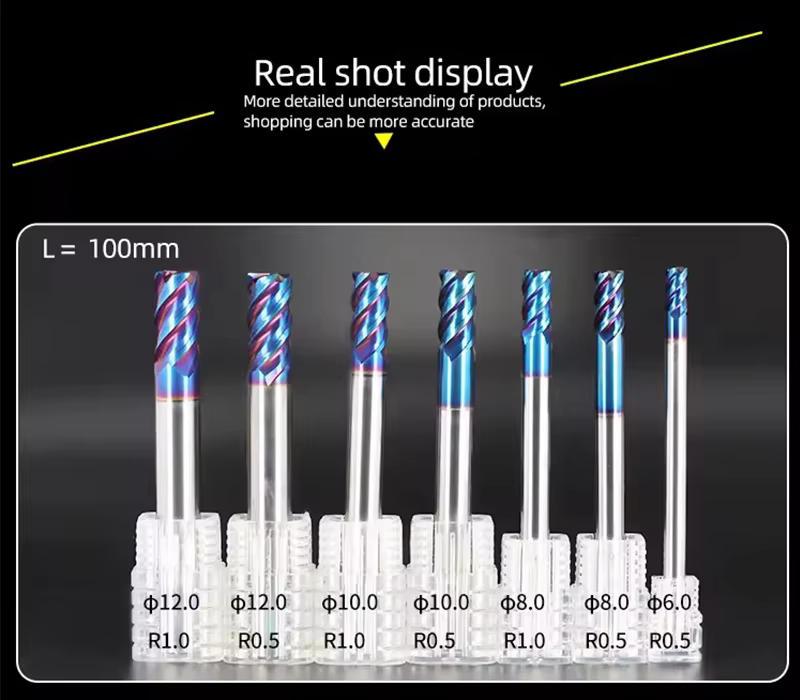

| Diameter Range | D3.0mm - D12.0mm (Fully Customizable to OEM Specs) |
| Corner Radius (R) | R0.5 - R1.0 (Custom Radii Supported) |
| Cutting Method | High-Speed, Dry Cutting Recommended |
| Application | Quenched & Tempered Steel, Die Steel (50HRC-65HRC), Cast Iron |
| Brand Name | Xiaoman Tools |
| Place of Origin | Shanghai, China |
| Customized Support | 100% OEM/ODM (Custom Dimensions, Shank Sizes, Laser Logo, OBM Packaging) |
- Factory Direct Pricing
- Strict Standard QC
- Support OEM / Custom Packaging
Want to know the MOQ and latest price?
Product Details
Industrial HRC65 Solid Carbide Corner Radius End Mill (Blue Nano Coated)
Uncompromising Performance for High-Hardness Mold and Die Machining
Tackle the toughest materials in the industry with Xiaoman Tools' Premium HRC65 Corner Radius End Mills. Engineered from ultra-fine grain solid tungsten steel and shielded by our advanced Blue Nano coating, these 4-flute cutters are specifically designed to excel in high-speed, dry cutting environments. Perfect for profiling and pocketing in quenched steel, tempered steel, and die steel up to 65 HRC. As a premier manufacturer, we offer comprehensive OEM solutions—customize your specific cutting diameters, corner radii, and overall lengths to perfectly align with your distribution network's demands.
Key Technical Advantages
- Corner Radius Design (Bull Nose): The precision-ground radiused corners significantly strengthen the cutting edge, dramatically reducing the risk of chipping and extending tool life compared to standard sharp-cornered flat end mills.
- Advanced Blue Nano Coating: This state-of-the-art coating boasts exceptional thermal stability and oxidation resistance, allowing for superior high-speed dry cutting while preventing material adhesion to the flutes.
- HRC65 Extreme Hardness: Forged from premium solid carbide, this end mill effortlessly machines extremely hard materials (50HRC to 65HRC) where conventional tools fail instantly.

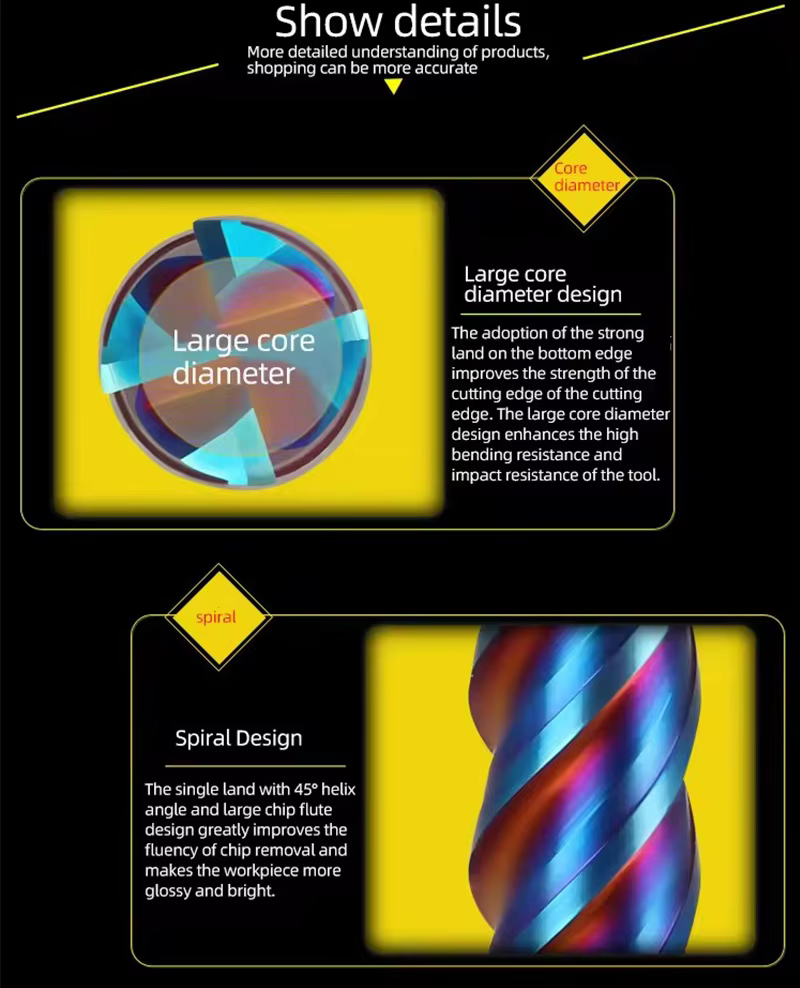

- 45° High-Helix Angle: The 4-flute, 45-degree spiral design ensures continuous, aggressive cutting action and incredibly smooth chip evacuation during heavy-duty profiling and side processing.
- Unrestricted OEM Flexibility: We don't limit your inventory. From standard D3xR0.5 to massive D12xR1.0, our state-of-the-art CNC grinding facility can manufacture any specific dimension, shank size, or apply your custom brand laser engraving.
Technical Specifications
| Manufacturer: | Xiaoman Tools (Shanghai, China) |
| Material: | Ultra-Fine Grain Solid Tungsten Steel |
| Milling Type: | Corner Radius End Mill |
| Coating: | Blue Nano (High Thermal Stability) |
| Machining Hardness: | Up to HRC 65° |
| Flutes & Helix Angle: | 4 Flutes / 45° Spiral Angle |
| Cutting Environment: | High-Speed / Dry Cutting Recommended |
| Target Applications: | Quenched/Tempered Steel, Die Steel, High Hardness Alloys |
