Industrial HRC50 Solid Carbide Flat End Mill (AlTiN Coated) – OEM Sizes
Premium General Purpose 4-Flute End Mill (HRC50, For Steel) – Customizable
Quick Specifications
| Product Name | OEM HRC50 Solid Carbide Flat End Mill (AlTiN Coated) |
|---|---|
| Milling Cutter Type | 4-Flute Flat End Mill (Square End Mill) |
| Material | Premium Solid Hard Alloy (Tungsten Steel) |
| Tool Hardness Rating | HRC50 (General Purpose Machining) |
| Coating | AlTiN (Aluminum Titanium Nitride) Coating |
| Flutes | 4 Flutes |
| Diameter Range | Standard D1.0 - D20.0mm (Fully Customizable to OEM Specs) |
| Overall Length | Standard 50mm - 100mm (Custom Lengths Supported) |
| Application | Carbon Steel, Alloy Steel, Cast Iron, Stainless Steel (Up to 50HRC) |
| Brand Name | Xiaoman Tools |
| Customized Support | 100% OEM/ODM/OBM (Custom Dimensions, Laser Etching, Packaging) |
- Factory Direct Pricing
- Strict Standard QC
- Support OEM / Custom Packaging
Want to know the MOQ and latest price?
Product Details

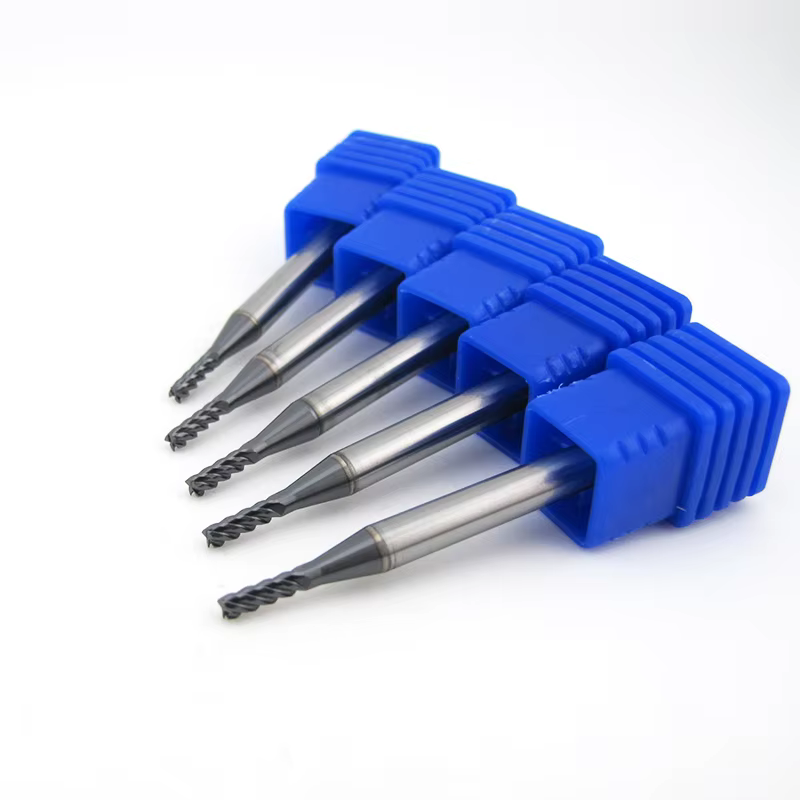

Industrial HRC50 Solid Carbide Flat End Mill (AlTiN Coated)
The Versatile, High-Performance Workhorse for Everyday Steel Machining
Build a reliable foundation for your CNC tooling inventory with Xiaoman Tools' HRC50 General Purpose Flat End Mills. Engineered for optimal balance between toughness and wear resistance, these 4-flute solid carbide cutters are the go-to solution for milling carbon steels, alloy steels, and cast iron up to 50 HRC. Enhanced with a high-performance AlTiN (Aluminum Titanium Nitride) coating, they deliver superior thermal stability, allowing for faster speeds and longer tool life in general machining applications. As a direct manufacturer, we remove standard catalog boundaries, offering comprehensive OEM solutions to customize cutting diameters, specific flute lengths, and brand-exclusive packaging.
Key Technical Advantages
- AlTiN Performance Coating: The Aluminum Titanium Nitride coating forms a hard aluminum oxide layer at high temperatures. This significantly reduces thermal transfer to the carbide substrate, drastically improving tool life during dry or semi-dry steel milling.
- HRC50 Universal Toughness: Manufactured from a high-quality solid tungsten steel matrix that provides the perfect blend of shock resistance and edge sharpness. Ideal for a vast majority of daily workshop tasks on steels up to 50HRC.
- High-Rigidity 4-Flute Design: The 4-flute square-end geometry maximizes the tool's core diameter, offering excellent rigidity to prevent deflection and ensure precise, straight cuts during side milling and shallow slotting.
- Optimized Chip Clearance: Precision-ground flutes ensure consistent chip evacuation, preventing recutting and maintaining a clean surface finish on the workpiece.
- 100% OEM Customization: While we offer standard sizes from D1.0mm to D20.0mm, our true strength lies in manufacturing exactly to your blueprint. We support custom geometries, custom overall lengths, and private laser engraving to elevate your wholesale brand.
Technical Specifications
| Manufacturer: | Xiaoman Tools (Shanghai, China) |
| Material: | Premium Solid Hard Alloy (Tungsten Steel) |
| Milling Type: | Flat End Mill (General Purpose) |
| Tool Hardness Rating: | HRC50 |
| Performance Coating: | AlTiN (Aluminum Titanium Nitride) |
| Flute Count: | 4 Flutes |
| Dimensions (Dia & Length): | 100% Customizable to OEM Specifications |
| Target Applications: | Carbon Steel, Alloy Steel, Cast Iron (Up to 50HRC) |
