Industrial 2-Flute Micro Long Neck Flat End Mill (Nano Coated) – OEM Sizes
Premium Deep Groove Micro End Mill for Precision Carving (HRC55/60) – Customizable
Quick Specifications
| Product Name | OEM Micro-Diameter Long Neck Flat End Mill (Nano Coated) |
|---|---|
| Milling Cutter Type | 2-Flute Flat End Mill (Micro-Diameter / Deep Cavity Design) |
| Material | Premium Ultra-Fine Solid Tungsten Carbide |
| Tool Hardness Rating | HRC55 / HRC60 Options Available |
| Coating | Advanced Nano Coating (High Wear Resistance) |
| Flutes | 2 Flutes (Optimized for micro-chip evacuation) |

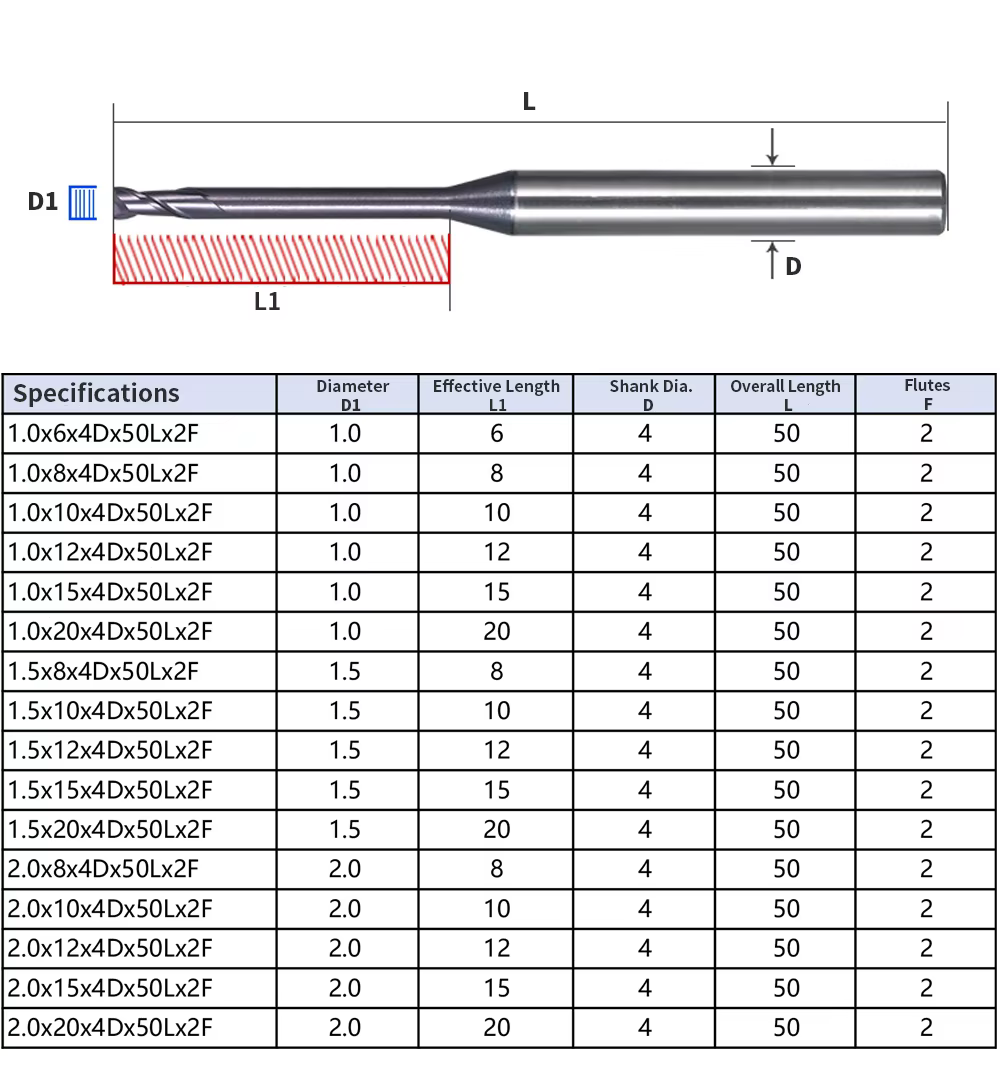

| Diameter Range | Micro Sizes D1.0mm - D2.0mm+ (Fully Customizable to OEM Specs) |
| Effective Neck Length | Standard 6mm - 20mm (Custom Deep Reach Supported) |
| Application | Precision Carving on Carbon Steel, Alloy Steel, Stainless Steel, Mold Steel |
| Brand Name | Xiaoman Tools |
| Customized Support | 100% OEM/ODM (Custom Micro-sizes, Reach Lengths, Packaging) |
- Factory Direct Pricing
- Strict Standard QC
- Support OEM / Custom Packaging
Want to know the MOQ and latest price?
Product Details

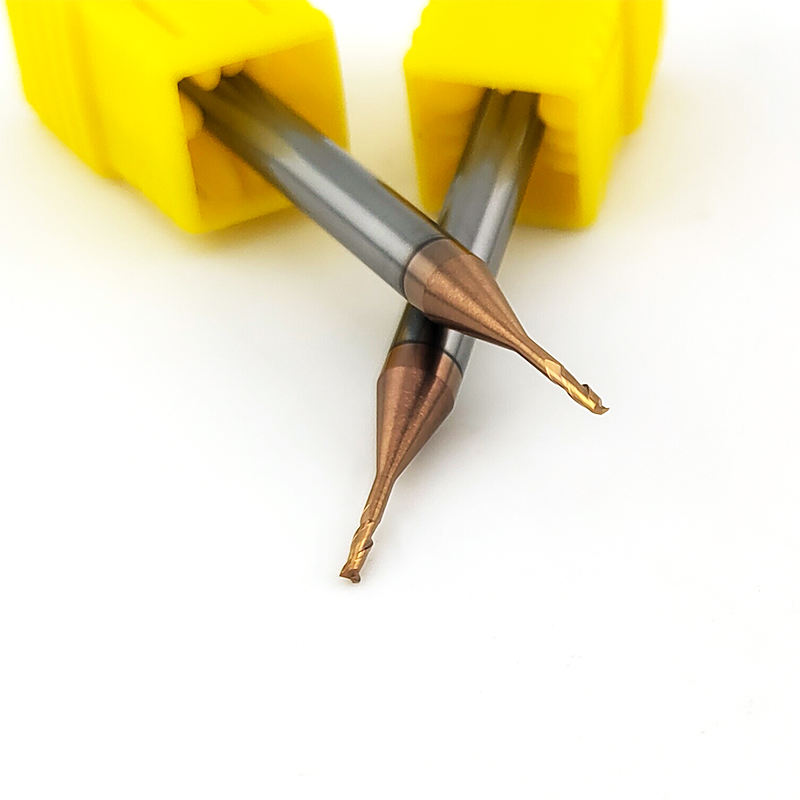

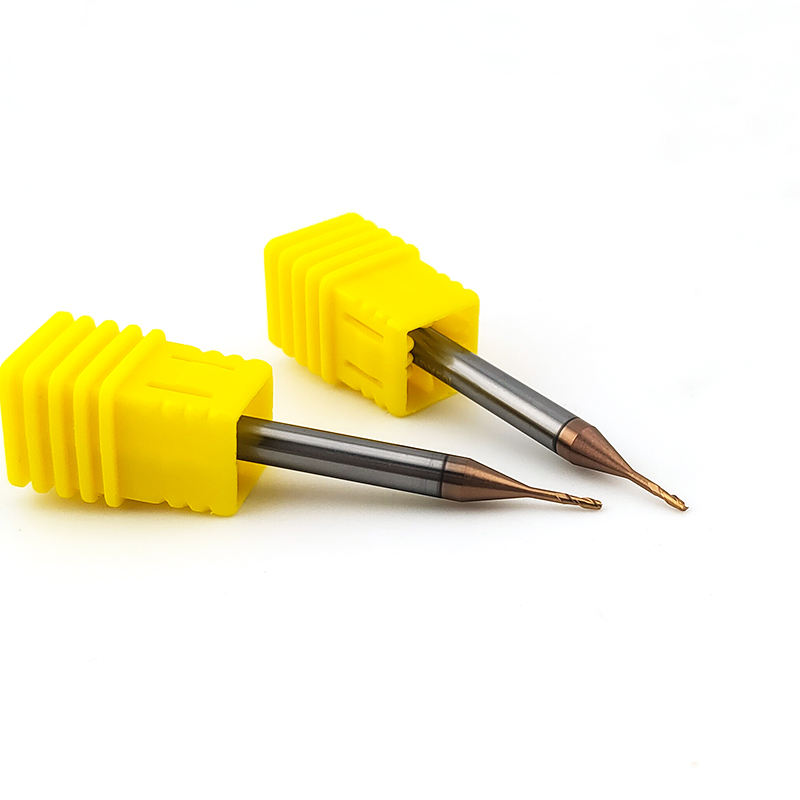

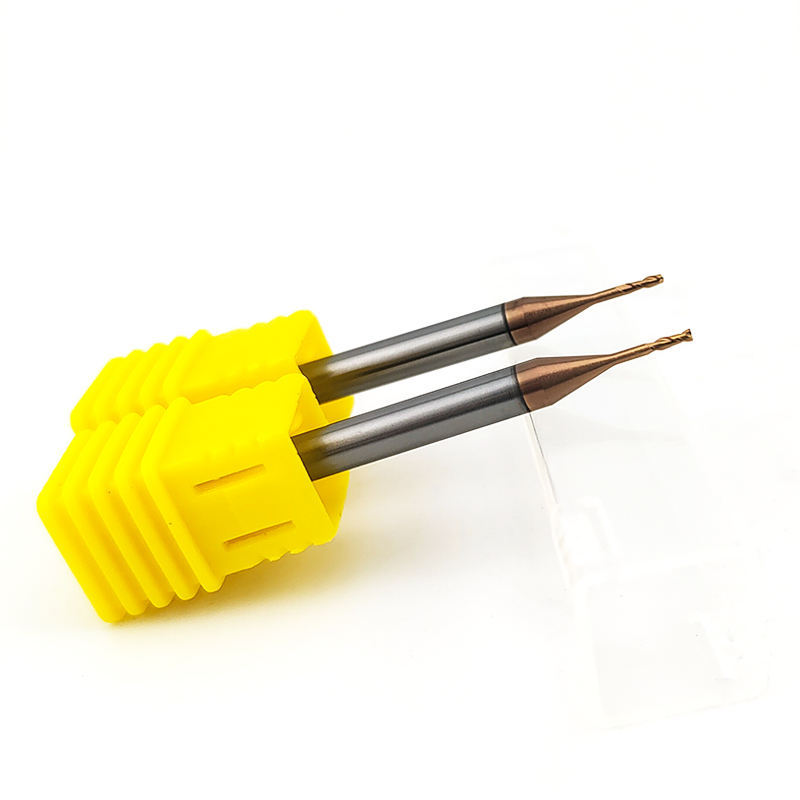

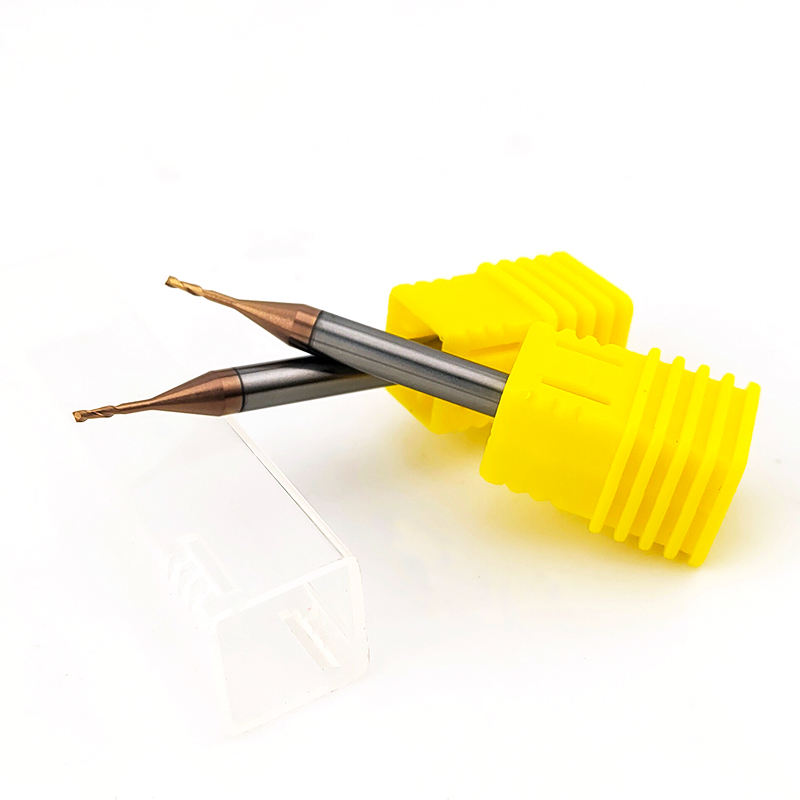

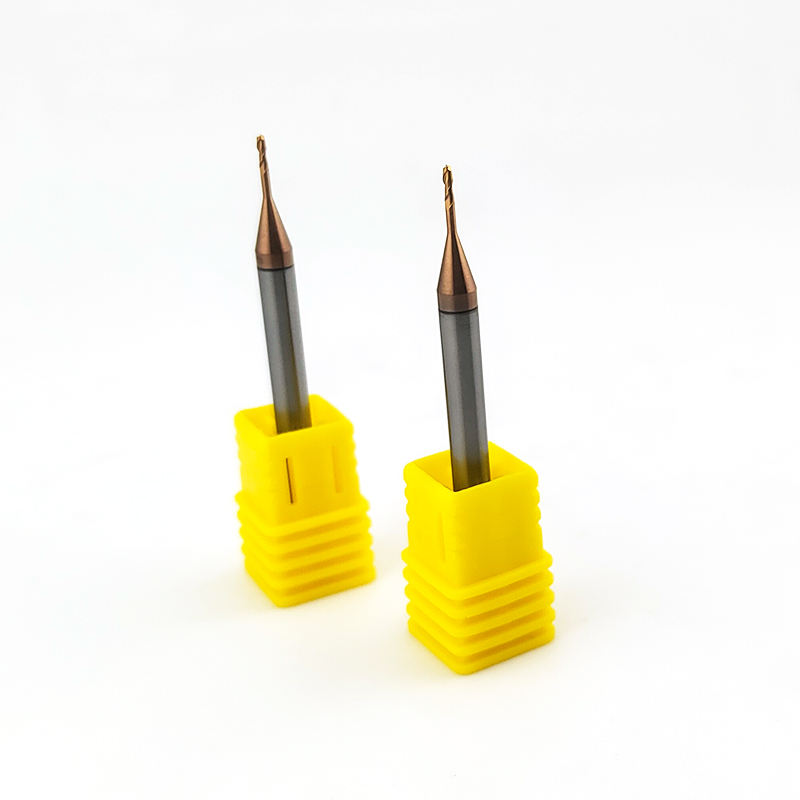

Industrial 2-Flute Micro Long Neck Flat End Mill (Nano Coated)
Uncompromising Precision for Micro-Machining and Deep Cavity Carving
When intricate details and deep pocket clearances are non-negotiable, Xiaoman Tools' Micro-Diameter Long Neck End Mills provide the ultimate solution. Engineered specifically for precision carving and deep small-hole processing, these 2-flute solid carbide cutters feature a strategically reduced neck diameter that prevents shank interference in tight mold cavities. Rated for HRC55 to HRC60 materials and enhanced with a high-performance nano-coating, they deliver flawless surface finishes on tough alloy and stainless steels. As a top-tier manufacturer, we bypass standard catalog limitations—allowing you to fully customize micro-diameters, exact effective lengths, and brand packaging for your wholesale clients.
Key Technical Advantages
- Long Neck Clearance Design: The relieved neck geometry guarantees zero rubbing or collision between the tool shank and the workpiece walls, making it indispensable for deep cavity milling and micro-3D profiling.
- Ultra-Fine Micro-Grain Carbide: Manufactured from an exceptionally dense tungsten steel matrix, providing the immense transverse rupture strength required to prevent tool snapping in extremely small diameters (e.g., D1.0mm).
- High-Efficiency 2-Flute Geometry: The 2-flute design offers the maximum possible chip evacuation space, which is critical for preventing chip packing and tool breakage in deep, narrow grooves.
- Advanced Nano Coating: Features a high-stability nano coating that drastically reduces cutting friction, shields the micro-edge from thermal degradation, and extends tool life in hard steels.
- Unrestricted OEM Capabilities: Do not let standard sizes dictate your market. From specific D1.0x20mm reach dimensions to entirely custom micro-geometries, our precision CNC grinding facility manufactures exactly to your strict tolerances.
Technical Specifications
| Manufacturer: | Xiaoman Tools (Shanghai, China) |
| Material: | Ultra-Fine Solid Tungsten Steel (Carbide) |
| Milling Type: | Flat End Mill (Micro-Diameter / Long Neck) |
| Tool Hardness Rating: | HRC55 / HRC60 Options Available |
| Performance Coating: | Advanced Nano Coating |
| Flute Count: | 2 Flutes |
| Dimensions (Dia & Reach): | 100% Customizable to OEM Specifications |
| Target Applications: | Mold Steel, Carbon Steel, Alloy Steel, Cast Iron |
