Premium Solid Carbide Dental Milling Bur for CAD/CAM Zirconia – OEM
2-Flute Ball Nose Dental Bur (DLC Coated) for PMMA & Zirconia – Customizable
Quick Specifications
| Product Name | OEM Solid Carbide CAD/CAM Dental Milling Bur (Zirconia/PMMA) |
|---|---|
| Milling Cutter Type | 2-Flute Dental Milling Bur (Micro Ball Nose) |
| Material | Premium Tungsten Cobalt Alloy (Ultra-Fine Micro-Grain Carbide) |
| Tolerance | Radius Tolerance up to -0.005mm / Diameter Tolerance 0.01mm |
| Coating Options | DLC (Diamond-Like Carbon) / TiAlN / Uncoated (Customizable) |
| Flutes | 2 Flutes (Optimized for smooth dust extraction) |

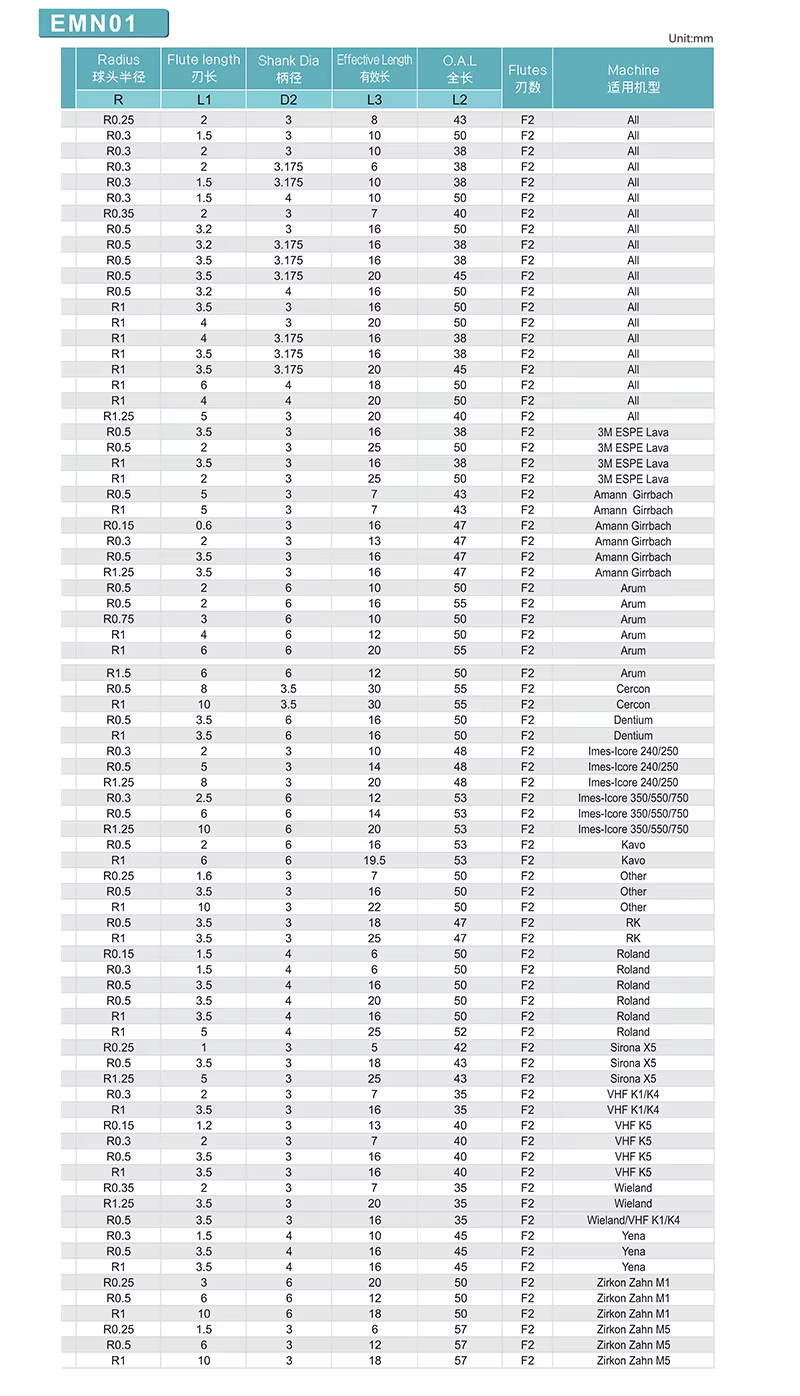

| Cutting Diameter | Micro Sizes D0.3mm - D3.0mm |
| Shank Diameter | Standard 4mm (Compatible with major CAD/CAM systems) |
| Machine Compatibility | Roland, VHF, Amann Girrbach, Sirona, Imes-Icore, Wieland, etc. |
| Application | Zirconia Oxide, PMMA, Wax, PEEK, Glass Ceramics, Cobalt Chrome |
| Brand Name | Xiaoman Tools |
| Customized Support | 100% OEM/ODM (Custom Dimensions, Machine Compatibility, Laser Branding) |
- Factory Direct Pricing
- Strict Standard QC
- Support OEM / Custom Packaging
Want to know the MOQ and latest price?
Product Details
Premium Solid Carbide Dental Milling Bur for CAD/CAM Systems
Micron-Level Precision for Flawless Dental Restorations
Elevate your dental laboratory supply catalog with Xiaoman Tools' Premium CAD/CAM Dental Milling Burs. Engineered to meet the exacting standards of the medical device industry, these 2-flute micro ball nose cutters boast a radius tolerance of up to -0.005mm. Forged from an ultra-fine tungsten cobalt alloy, they effortlessly machine intricate crowns, bridges, and abutments from Zirconia, PMMA, Wax, and Cobalt Chrome. Fully compatible with world-leading open CAD/CAM systems (including Roland, VHF, Amann Girrbach, and Sirona). As a direct manufacturer, we provide absolute OEM/ODM flexibility—customize your coating options (like extreme-life DLC), shank designs, and private label packaging to establish your own brand in the profitable dental sector.
Key Technical Advantages
- Extreme Micron Precision: Manufactured with a stringent radius tolerance of -0.005mm and a diameter tolerance of 0.01mm. This guarantees perfect marginal fits and flawless surface finishes on dental restorations, drastically reducing manual polishing time.
- Optimized for Dental Materials: The specialized 2-flute ball nose geometry prevents edge chipping when milling brittle Zirconia and Glass Ceramics, while effectively preventing melting when cutting PMMA and wax.
- Advanced Coating Technologies: Available bare, with TiAlN, or with state-of-the-art DLC (Diamond-Like Carbon) coatings. DLC significantly extends tool life by preventing abrasive wear from Zirconium dust.
- Universal CAD/CAM Compatibility: Our standard 4mm shank series is precision-ground to integrate seamlessly with global open-system milling machines, ensuring vibration-free operation at extremely high RPMs.
- Limitless OEM Capabilities: We don't just supply tools; we build brands. Partner with our CNC grinding facility for bespoke bur dimensions tailored to specific proprietary machines, complete with laser-etched logos and custom retail cases.

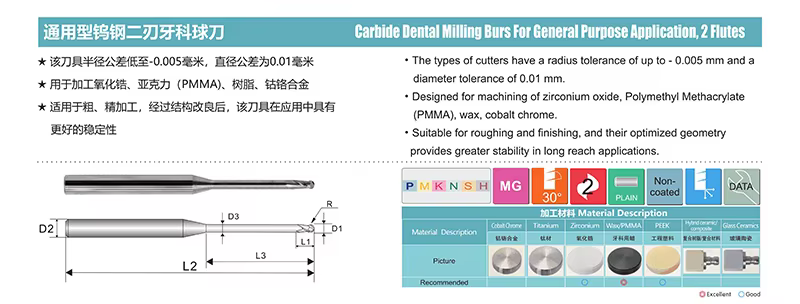

Technical Specifications
| Manufacturer: | Xiaoman Tools (Shanghai, China) |
| Material: | Tungsten Cobalt Alloy (Micro-Grain Carbide) |
| Milling Type: | Dental Milling Bur (Micro Ball Nose) |
| Precision Tolerance: | Radius up to -0.005mm / Diameter 0.01mm |
| Coating Options: | DLC, TiAlN, Uncoated (Customizable) |
| Flute Count: | 2 Flutes |
| Shank & Dimensions: | 4mm Shank / D0.3 - D3.0mm (100% OEM Ready) |
| Target Processing Materials: | Zirconia, PMMA, Wax, Glass Ceramic, CoCr |
