Industrial 2-Flute Micro Ball Nose End Mill (R0.05-R3.0mm) – OEM Custom
Premium Miniature Solid Carbide Ball Nose Cutter for 3D Profiling – Customizable
Quick Specifications
| Product Name | OEM Premium Micro Ball Nose End Mill (R0.05mm - R3.0mm) |
|---|---|
| Milling Cutter Type | 2-Flute Miniature Ball Nose End Mill |
| Material | Ultra-Fine Micro-Grain Solid Tungsten Carbide |
| Coating | Advanced Nano-Coating (For extreme wear resistance on micro-edges) |
| Radius Range | Ultra-Micro R0.05mm to R3.0mm (Fully Customizable) |
| Flutes | 2 Flutes (Precision ground under high-magnification) |

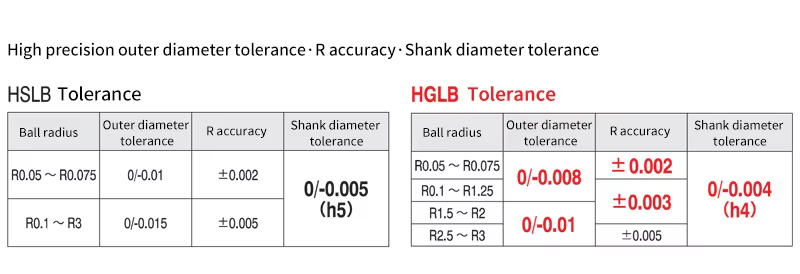

| Tolerance | High-Precision Micron-Level Tolerance Control |
| Application | Micro 3D Profiling, Precision Mold Making, Engraving, Coin Minting |
| Brand Name | Xiaoman Tools |
| Customized Support | 100% OEM/ODM (Custom Micro-Radii, Shank Sizes, Secure Packaging) |
- Factory Direct Pricing
- Strict Standard QC
- Support OEM / Custom Packaging
Want to know the MOQ and latest price?
Product Details
Industrial 2-Flute Micro Ball Nose End Mill (R0.05mm - R3.0mm)
Extreme Micron-Level Precision for the Most Intricate 3D Profiling
When the detail required is smaller than a grain of sand, Xiaoman Tools' Micro Ball Nose End Mills deliver. Manufacturing a flawless R0.05mm spherical cutting edge requires world-class CNC grinding technology and uncompromising quality control. Forged from ultra-fine micro-grain solid carbide, these miniature cutters possess the immense core strength needed to prevent tool breakage at micro-diameters. Shielded by an advanced nano-coating, they provide exceptional tool life during intricate 3D profiling, precision mold making, and micro-engraving. As a true source manufacturer, we empower your wholesale brand by offering completely customizable micro-radii, exact tolerances, and secure, shock-proof packaging.
Key Technical Advantages
- Ultra-Micro R0.05mm Capability: Our advanced grinding centers are capable of producing flawless spherical tips down to R0.05mm (0.1mm diameter), making these tools indispensable for coin minting, medical device machining, and micro-mold cavities.
- Ultra-Fine Grain Carbide Matrix: Standard carbide is too brittle for micro-machining. We utilize a highly specialized, ultra-fine tungsten steel matrix that provides massive transverse rupture strength, drastically reducing the risk of the micro-tip snapping.
- High-Magnification Precision: Every batch is rigorously inspected under high-magnification optical measurement systems to ensure perfect symmetry and zero edge defects before leaving our facility.
- Advanced Nano-Coating: Protects the delicate micro-cutting edge from abrasive wear and thermal degradation, ensuring a consistently mirror-like finish on the machined part over long production runs.
- Complete OEM Micro-Manufacturing: Standard catalogs cannot cover every micro-machining need. We offer 100% bespoke manufacturing—specify your exact radius, neck clearance, shank diameter, and private label requirements.

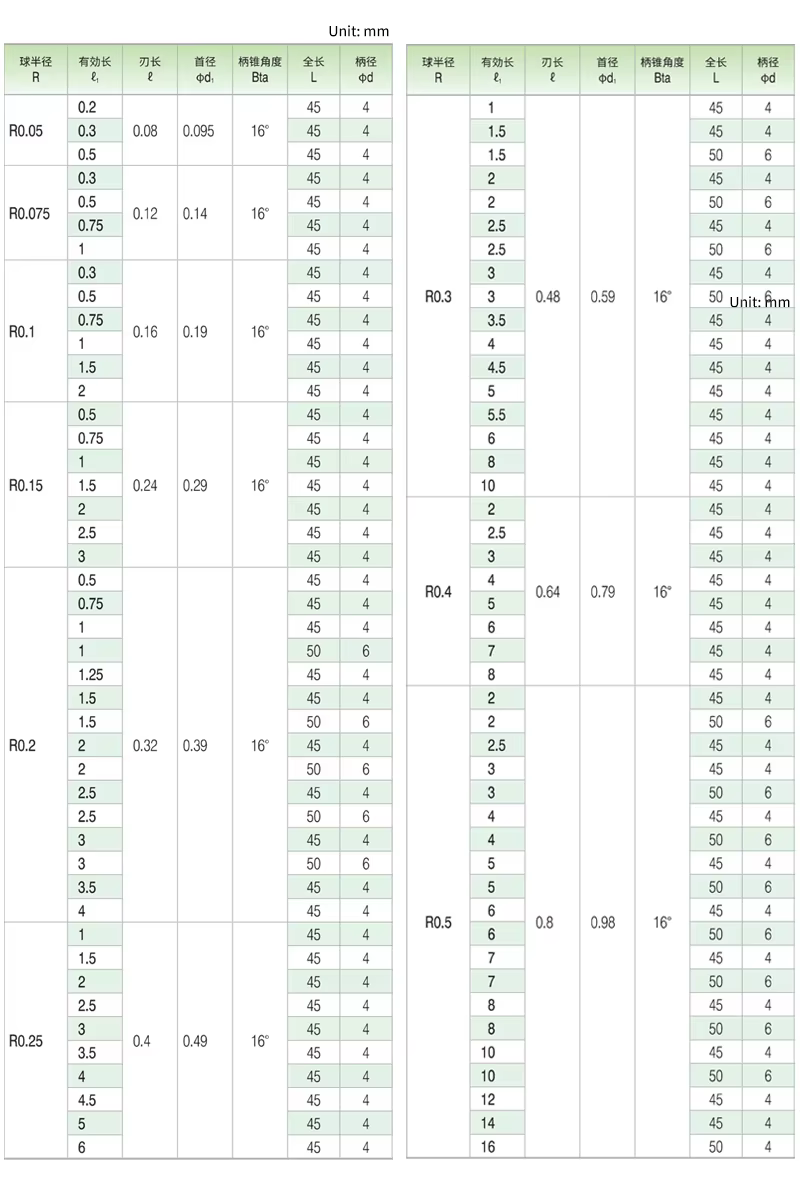

Technical Specifications
| Manufacturer: | Xiaoman Tools (Shanghai, China) |
| Material Matrix: | Ultra-Fine Micro-Grain Solid Carbide |
| Milling Type: | Micro / Miniature Ball Nose End Mill |
| Radius Capabilities: | R0.05mm to R3.0mm (Fully Custom) |
| Performance Coating: | Advanced Nano-Coating |
| Flute Count: | 2 Flutes |
| Quality Control: | High-Magnification Optical Inspection |
| Target Applications: | Micro-Mold Making, 3D Precision Profiling, Engraving |
