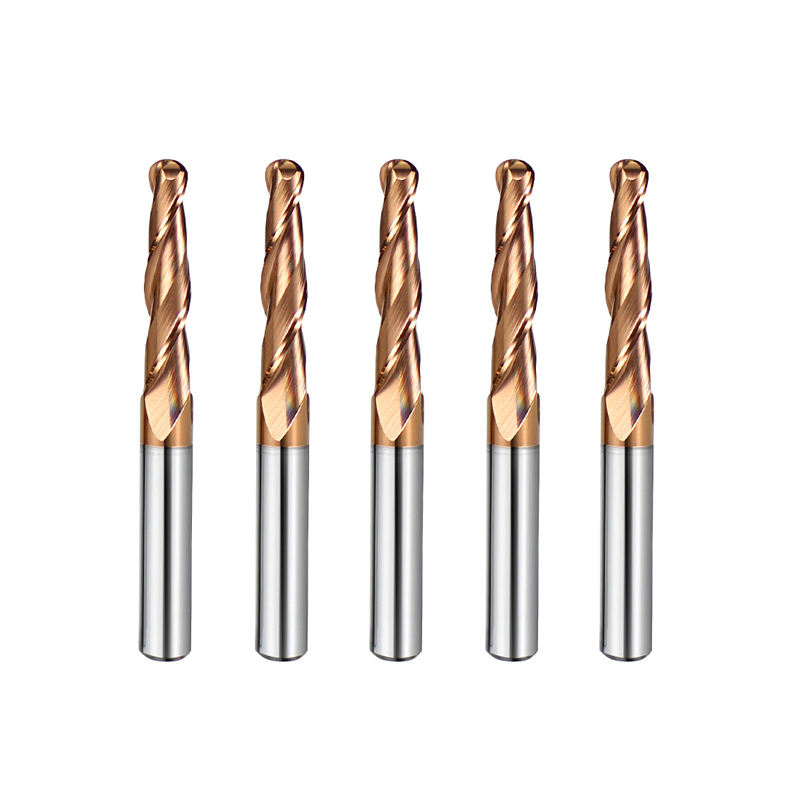

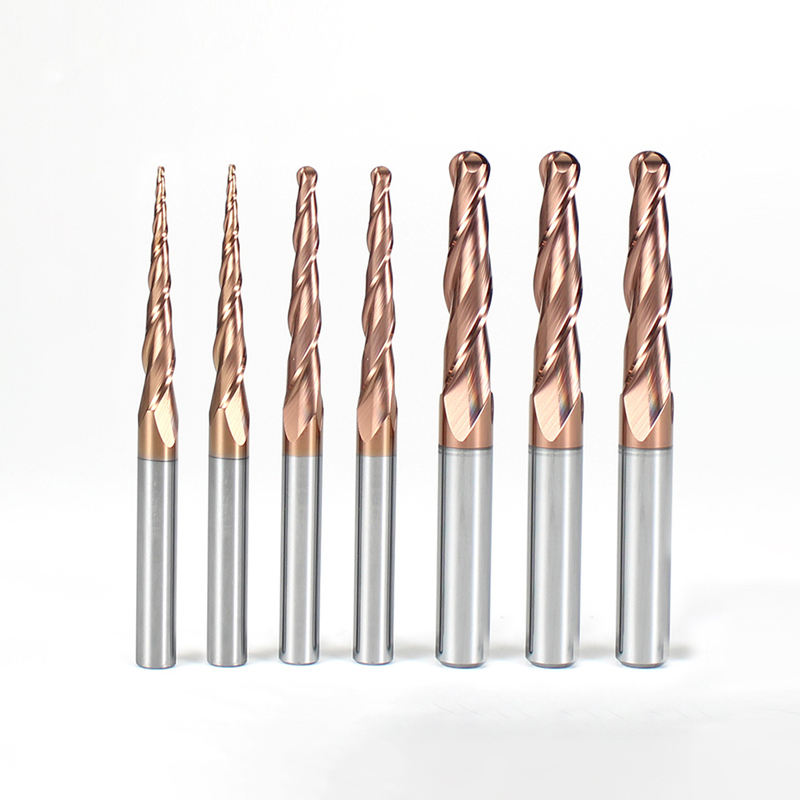

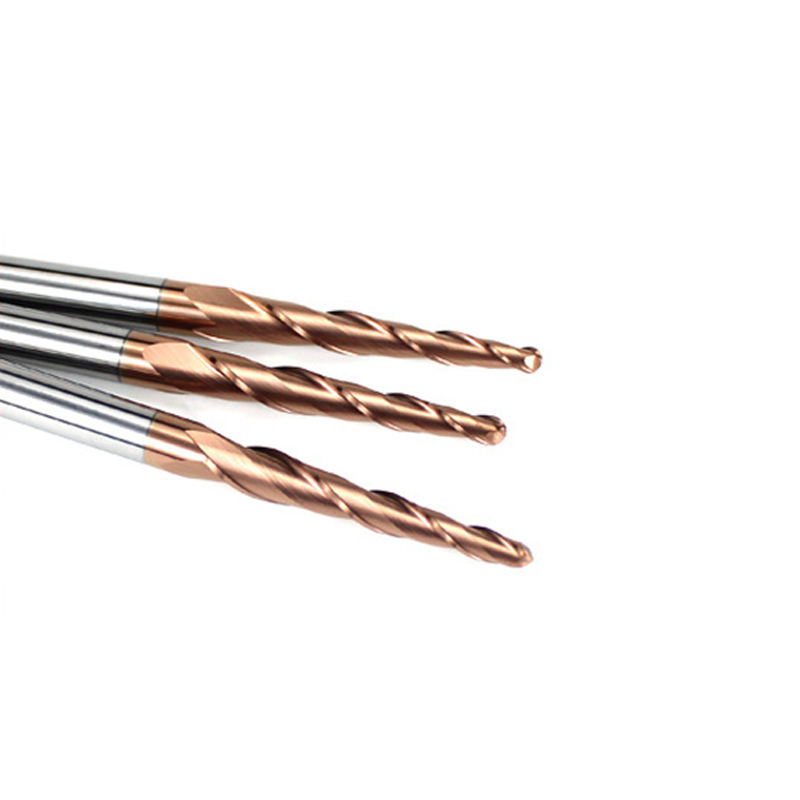

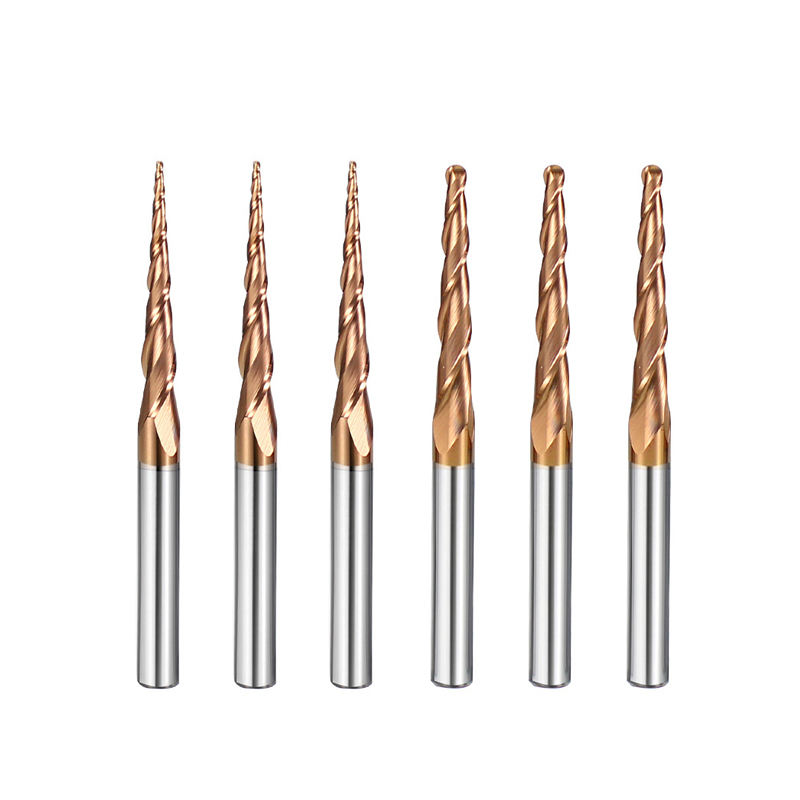

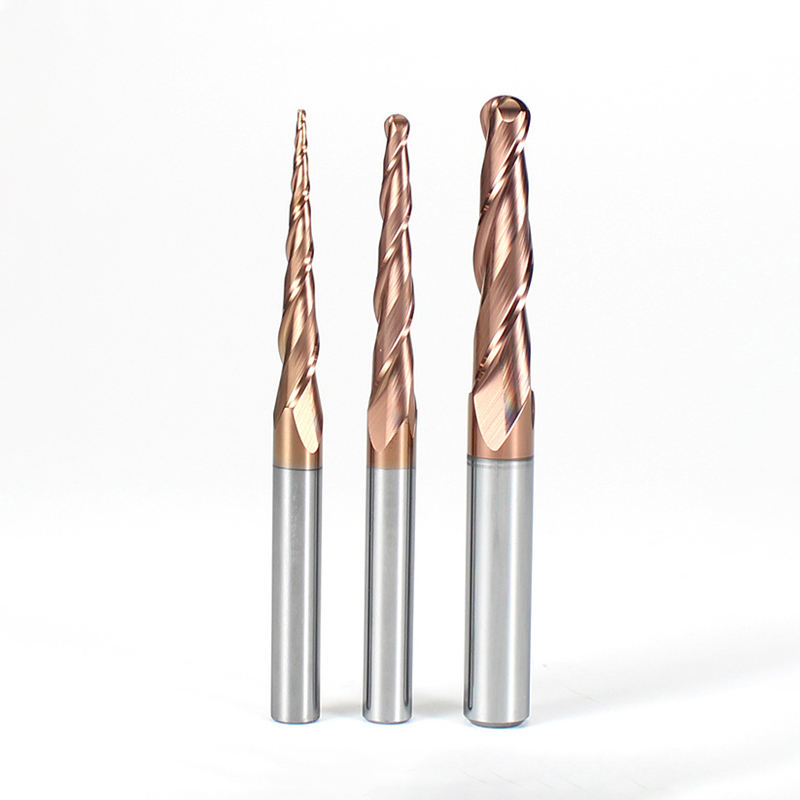

Industrial Solid Carbide Tapered Ball Nose Router Bit – OEM Sizes
Premium 2-Flute Tapered Ball Nose End Mill for Deep 3D Carving – Customizable
Quick Specifications
| Product Name | OEM Solid Carbide Tapered Ball Nose Router Bit (3D Engraving) |
|---|---|
| Milling Cutter Type | 2-Flute Tapered Ball Nose End Mill |
| Material | Premium Solid Tungsten Carbide |
| Radius Range | Standard R0.25 - R2.0 (Fully Customizable to OEM Specs) |
| Flutes | 2 Flutes (Deep polished grooves for fast wood chip clearance) |
| Shank Diameter | Standard 4mm / 6mm / 8mm / 10mm |
| Geometry Feature | Tapered Core (Provides massive strength for micro-tips) |
| Application | Deep 3D Relief Carving, Hardwood, MDF, Plywood, Acrylic, PVC |
| Brand Name | Xiaoman Tools |
| Customized Support | 100% OEM/ODM/OBM (Custom Radii, Taper Angles, Laser Logo, Packaging) |
- Factory Direct Pricing
- Strict Standard QC
- Support OEM / Custom Packaging
Want to know the MOQ and latest price?
Product Details
Industrial Solid Carbide Tapered Ball Nose Router Bit
Unbreakable Core Strength for Intricate Deep 3D Relief Carving
Deliver the ultimate 3D woodworking solution to your distribution network with Xiaoman Tools' Tapered Ball Nose Router Bits. When executing deep relief carvings, standard micro-cutters often snap under lateral pressure. Our tapered geometry solves this by combining a micro-precision ball radius (down to R0.25) with an ultra-thick, rigid shank core. Forged from premium industrial solid tungsten carbide, these bits easily outperform standard HSS tools, offering phenomenal wear resistance in dense hardwoods, MDF, and acrylics. As your direct source manufacturer, we provide unmatched OEM flexibility—customize specific taper angles, tip radii, cutting lengths, and private-label packaging to perfectly match your market demands.
Key Technical Advantages
- Optimized Tapered Geometry: The conical shape provides massive core strength behind the delicate cutting tip. This significantly reduces vibration and eliminates tool snapping, allowing for aggressive feed rates during deep cavity 3D routing.
- Flawless 3D Profiling: The precision-ground ball nose tip ensures exceptionally smooth contours and seamless transitions, drastically reducing the need for manual sanding on intricate wood or acrylic carvings.
- Premium Solid Carbide Durability: Manufactured from an industrial-grade tungsten steel matrix, ensuring the cutting edge remains razor-sharp much longer than conventional bits, even when machining abrasive MDF and tough composites.
- High-Efficiency 2-Flute Design: Features highly polished flutes that prevent resin buildup and ensure rapid, continuous chip evacuation, resulting in burn-free finishes.
- Unrestricted OEM Customization: We build tooling for your brand. Our CNC facility can manufacture custom taper angles to match specific draft requirements, non-standard radii, and apply your exclusive brand laser etching directly on the shank.

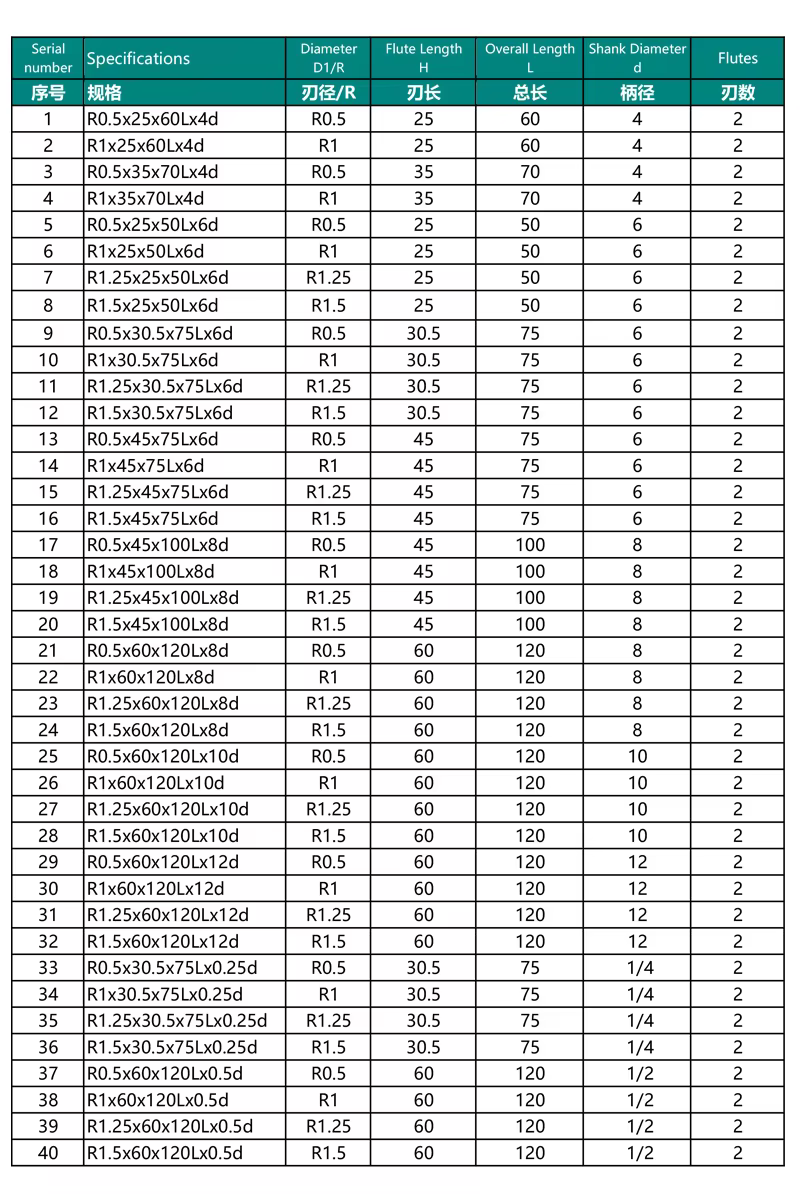

Technical Specifications
| Manufacturer: | Xiaoman Tools (Shanghai, China) |
| Material: | Premium Solid Tungsten Carbide |
| Cutter Type: | Tapered Ball Nose Router Bit |
| Radius Range: | R0.25 to R2.0 (Custom Radii Supported) |
| Shank Diameters: | 4mm, 6mm, 8mm, 10mm |
| Flute Count: | 2 Flutes |
| Target Applications: | Deep 3D Relief Carving, Hardwood, MDF, Acrylic |
| Compatible Machines: | CNC Wood Routers, 3D Engraving Machines |
