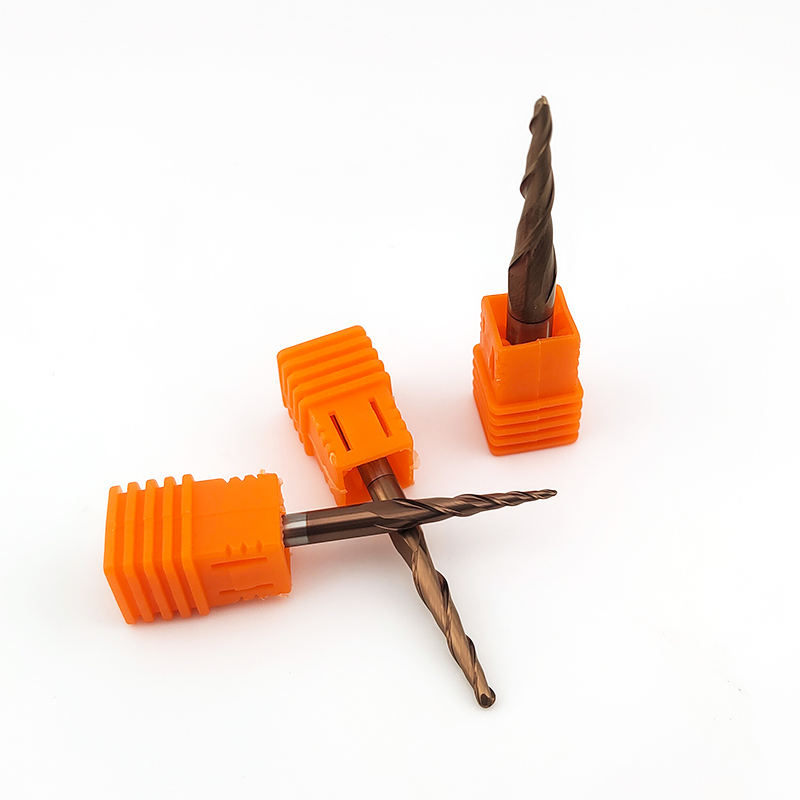

Industrial HRC55 Solid Carbide Tapered Ball Nose End Mill (Nano Coated) – OEM
Premium 2-Flute Tapered Ball Cutter for 3D Mold Profiling (HRC55) – Customizable
Quick Specifications
| Product Name | OEM HRC55 Solid Carbide Tapered Ball Nose End Mill (Nano Coated) |
|---|---|
| Milling Cutter Type | 2-Flute Tapered Ball Nose End Mill (3D Profiling / Mold Tool) |
| Material | Premium Solid Hard Alloy (Tungsten Steel) |
| Tool Hardness Rating | HRC55 (Engineered for Mold & Die Machining) |
| Coating | Advanced Bronze Nano-Coating (High Thermal & Wear Resistance) |
| Flutes | 2 Flutes (Optimized for deep cavity chip evacuation) |
| Diameter & Taper Angle | Standard D1.0 - D10.0mm (Custom Taper Angles Supported) |
| Application | 3D Mold Profiling, Draft Angles, Carbon Steel, Alloy Steel, Cast Iron |
| Brand Name | Xiaoman Tools |
| Customized Support | 100% OEM/ODM/OBM (Custom Radii, Angles, Laser Etching, Packaging) |
- Factory Direct Pricing
- Strict Standard QC
- Support OEM / Custom Packaging
Want to know the MOQ and latest price?
Product Details
Industrial HRC55 Solid Carbide Tapered Ball Nose End Mill (Nano Coated)
Unbeatable Core Rigidity for Deep Cavity 3D Mold Profiling
Tackle the most demanding 3D contouring and mold draft angles with Xiaoman Tools' HRC55 Tapered Ball Nose End Mills. Standard straight-shank ball mills often suffer from deflection or snapping when reaching into deep mold cavities. Our engineered tapered geometry solves this by combining a highly precise spherical tip with a reinforced, thickened core. Forged from premium solid tungsten steel and protected by an advanced bronze nano-coating, these cutters easily machine carbon steel, alloy steel, and cast iron up to 55HRC. As a true direct manufacturer, we offer comprehensive OEM solutions—customize exact taper angles, specific tip radii, and laser-engraved brand logos to perfectly align with your B2B wholesale distribution strategy.
Key Technical Advantages
- Tapered Core Geometry: The conical shank design provides maximum rigidity and vibration dampening. This ensures the micro-ball tip remains perfectly stable during deep cavity machining, preventing tool breakage and chatter marks on complex 3D surfaces.
- HRC55 Industrial Toughness: Manufactured from an exceptionally dense carbide matrix, delivering the superior transverse rupture strength required for continuous milling on hardened mold steels.
- Flawless 3D Contouring: The precision-ground 2-flute ball nose tip allows for seamless multi-axis profiling, reducing the need for secondary manual polishing on intricate mold components.
- Advanced Bronze Nano-Coating: This high-performance thermal barrier significantly reduces cutting friction and shields the cutting edge from heat degradation during high-speed, dry or semi-dry CNC routing.
- Unrestricted OEM Capabilities: Do not let standard catalogs limit your clients' potential. Our advanced grinding facility can manufacture bespoke taper angles, custom overall reaches, and apply your exclusive branding tailored exactly to your specifications.

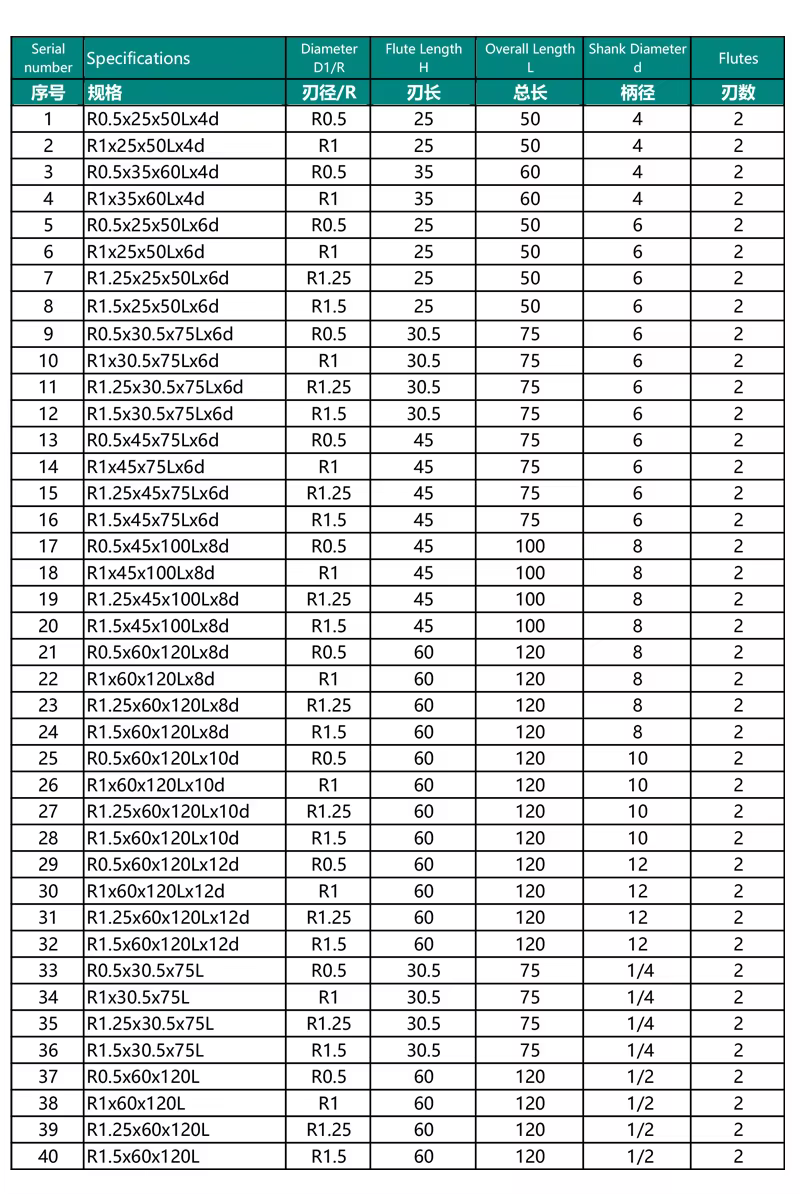

Technical Specifications
| Manufacturer: | Xiaoman Tools (Shanghai, China) |
| Material: | Premium Solid Tungsten Steel (Carbide) |
| Milling Type: | Tapered Ball Nose End Mill (3D Profiling) |
| Tool Hardness Rating: | HRC55 |
| Performance Coating: | Advanced Bronze Nano-Coating |
| Flute Count: | 2 Flutes |
| Dimensions & Angles: | 100% Customizable to OEM Blueprint |
| Target Applications: | Mold Steel, Carbon Steel, Alloy Steel, Deep 3D Carving |
