Industrial 3-Flute Solid Carbide End Mill for Aluminum (Mirror Polished) – OEM
Premium High-Gloss Aluminum Milling Cutter (0.2μm Micro-Grain Carbide) – Customizable
Quick Specifications
| Product Name | OEM 3-Flute Solid Carbide End Mill for Aluminum (Mirror Polished) |
|---|---|
| Milling Cutter Type | 3-Flute Flat End Mill (Aluminum Dedicated) |
| Material | 0.2μm Ultra-Fine Micro-Grain Solid Carbide (HRC65 Grade Blank) |
| Coating | Uncoated (Mirror-Polished Flutes to prevent Built-Up Edge) |
| Flutes | 3 Flutes (High-Capacity Chip Evacuation) |

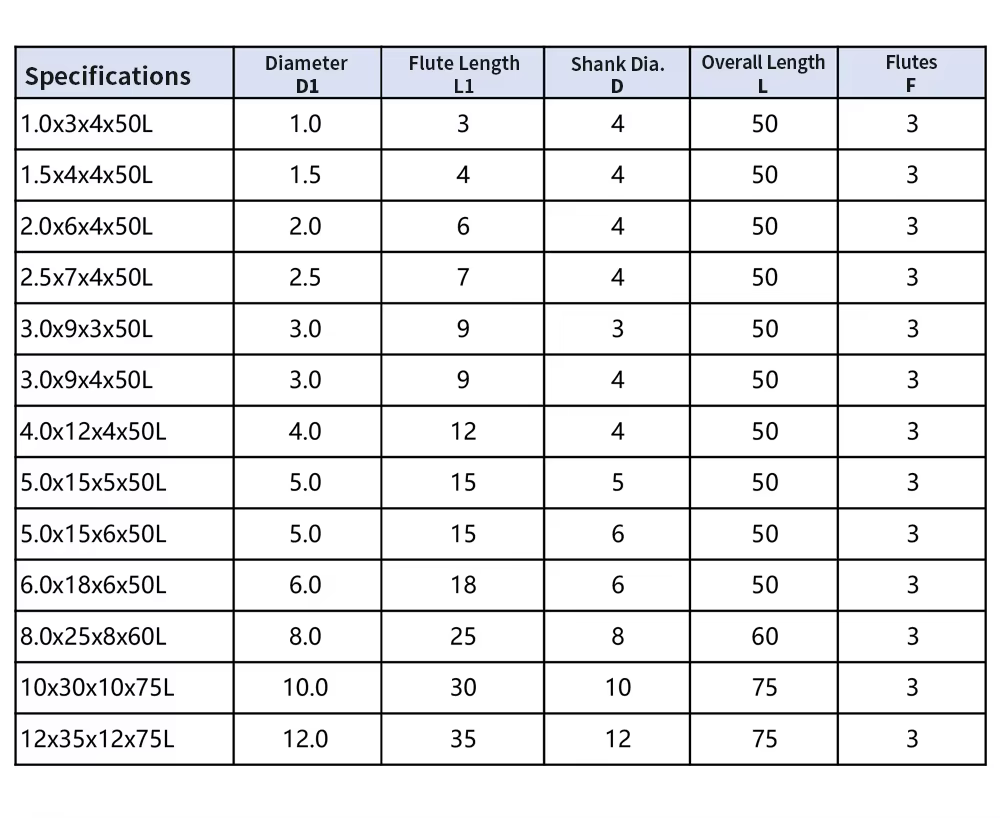

| Diameter Range | Standard D1.0 - D12.0mm (Fully Customizable to OEM Specs) |
| Overall Length | Standard 50mm - 75mm (Custom Lengths Supported) |
| Application | Aluminum, Aluminum Alloys, Copper, Brass, Magnesium, Zinc |
| Brand Name | Xiaoman Tools |
| Customized Support | 100% OEM/ODM (Custom Dimensions, Shank Sizes, Laser Etching, Packaging) |
- Factory Direct Pricing
- Strict Standard QC
- Support OEM / Custom Packaging
Want to know the MOQ and latest price?
Product Details
Industrial 3-Flute Solid Carbide End Mill for Aluminum (Mirror Polished)
Zero Built-Up Edge, Maximum Speed for Non-Ferrous Machining
Machining soft, gummy materials like aluminum requires a specialized approach. Xiaoman Tools' Premium 3-Flute Aluminum End Mills are expertly engineered to solve the problem of chip packing and built-up edge (BUE). Forged from top-tier 0.2μm ultra-fine micro-grain solid carbide (HRC65 grade blank), these cutters deliver extreme rigidity. Instead of standard coatings that cause chemical affinity with aluminum, we utilize a flawless mirror-polish finish on the flutes to ensure chips slide off effortlessly at high speeds. As your direct manufacturing partner, we provide 100% OEM flexibility—customize diameters, overall lengths, and brand packaging to perfectly suit your wholesale catalog.
Key Technical Advantages
- Mirror-Polished Flutes (Uncoated): Specifically left uncoated and highly polished to a mirror finish. This eliminates friction and prevents the aluminum from melting and welding to the cutting edge, ensuring exceptionally smooth, burr-free part finishes.
- 0.2μm Ultra-Fine Micro-Grain Carbide: Manufactured from a premium HRC65-grade tungsten steel matrix. This dense, 0.2-micron particle structure provides massive transverse rupture strength, preventing tool deflection during high-feed aluminum routing.

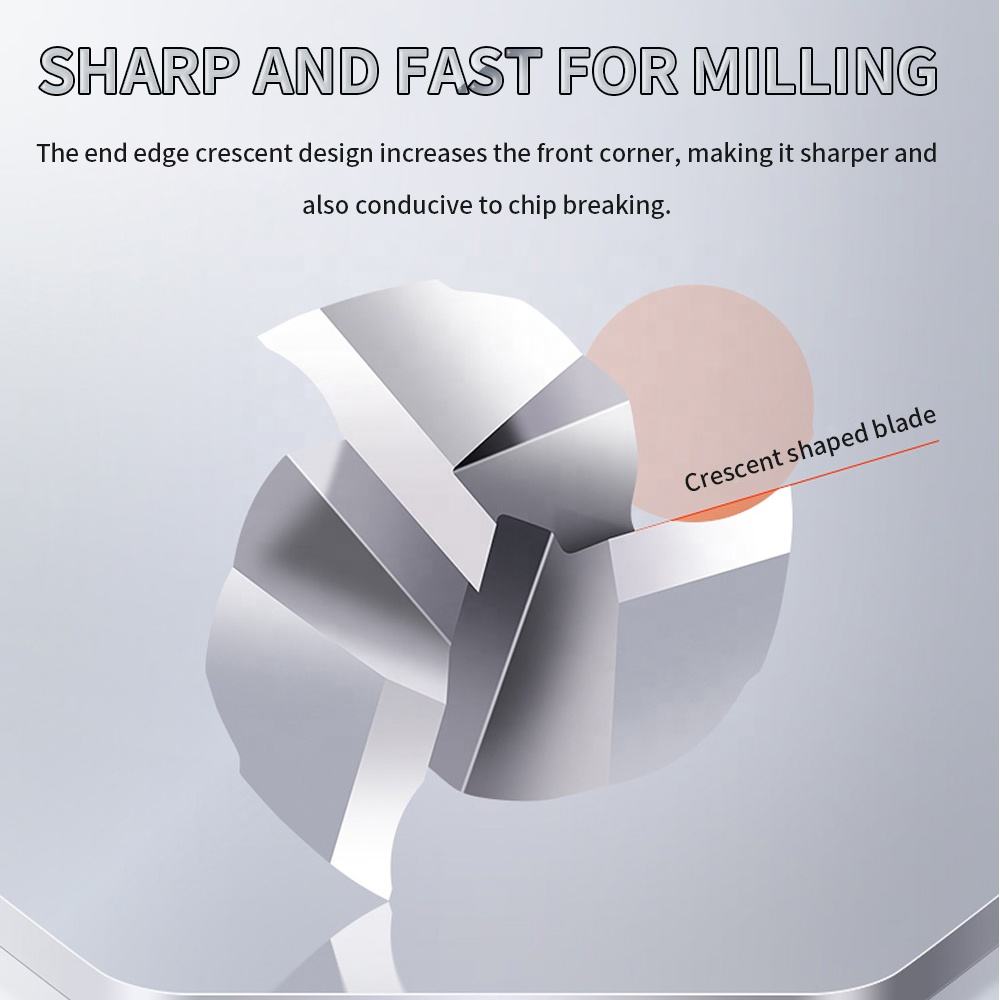

- High-Volume 3-Flute Geometry: The optimized 3-flute design offers the perfect balance: a stronger core than a 2-flute cutter, but with significantly larger chip evacuation valleys than a 4-flute cutter.
- Specialist for Non-Ferrous Metals: The ultimate CNC solution for milling Aluminum, Aluminum Alloys, Copper, Brass, Magnesium, and Zinc alloys.
- Limitless OEM Customization: Standard sizes (D1 to D12) are just a baseline. Our advanced grinding facility can manufacture any custom diameter, specific shank requirement, or extended length your market dictates, complete with custom laser branding.

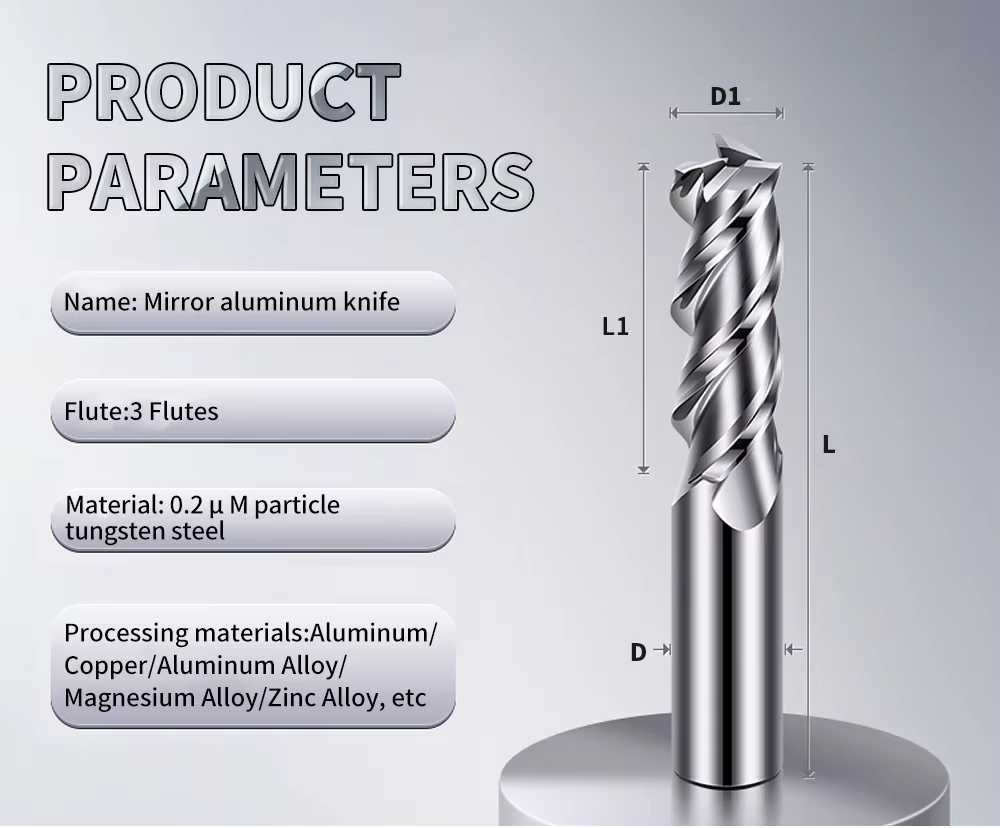

Technical Specifications
| Manufacturer: | Xiaoman Tools (Shanghai, China) |
| Material Matrix: | 0.2μm Ultra-Fine Micro-Grain Solid Carbide |
| Milling Type: | Flat End Mill (Aluminum Dedicated) |
| Flute Finish: | Mirror-Polished / Uncoated (Anti-Sticking) |
| Flute Count: | 3 Flutes |
| Dimensions (Dia x Length): | 100% Customizable to Client Specifications |
| Target Applications: | Aluminum, Copper, Magnesium, Zinc, Non-Ferrous Alloys |
| Compatible Machines: | CNC Machining Centers, High-Speed Engraving Machines |
