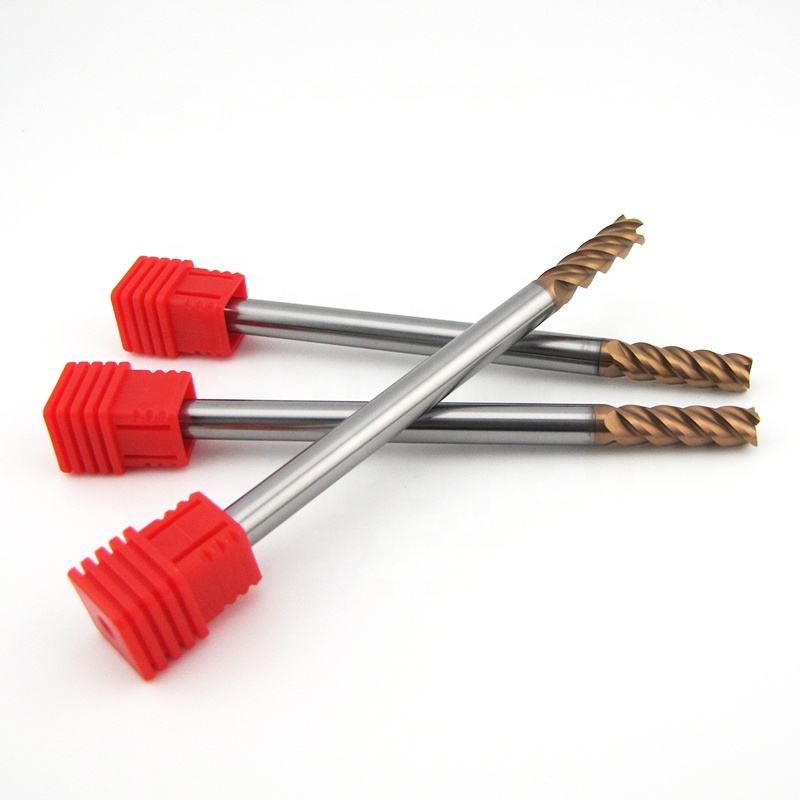

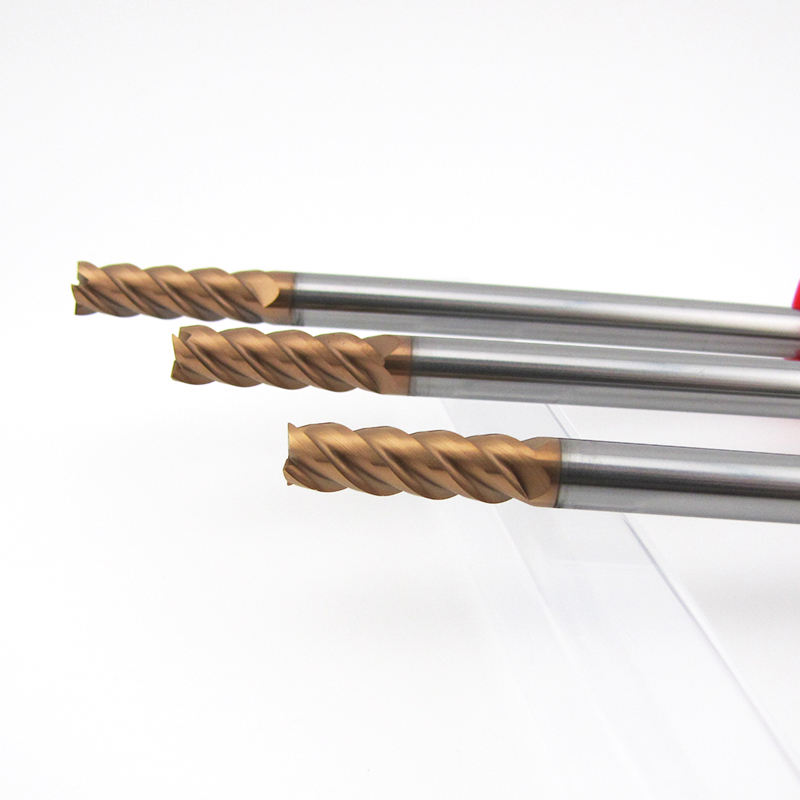

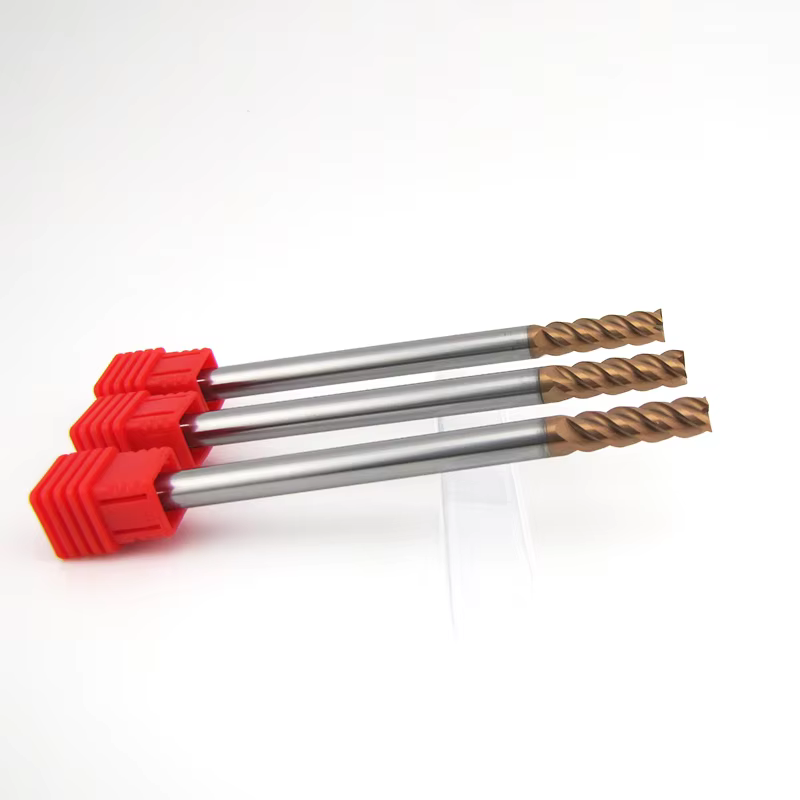

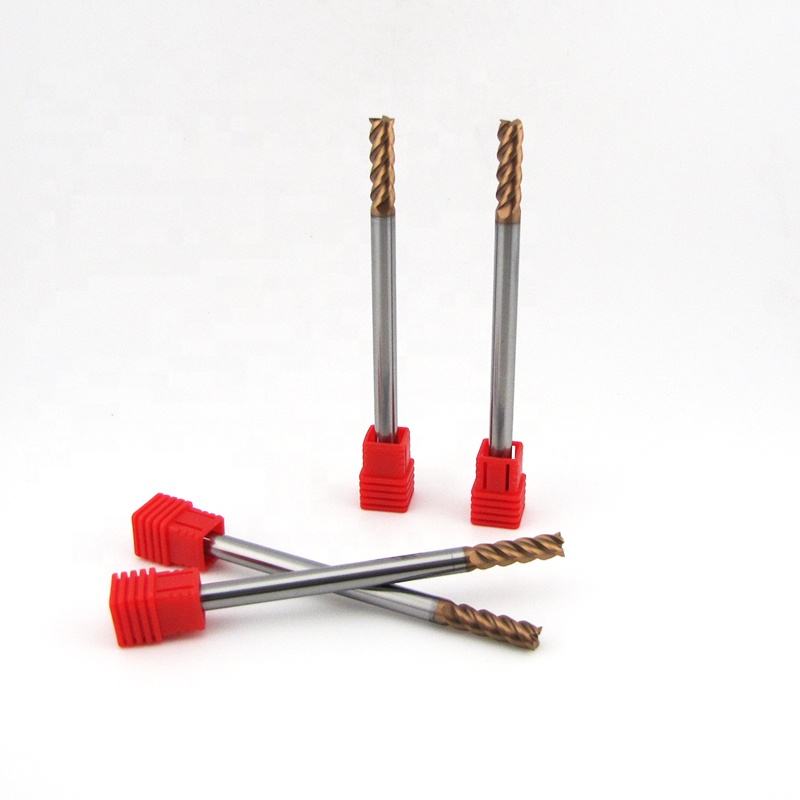

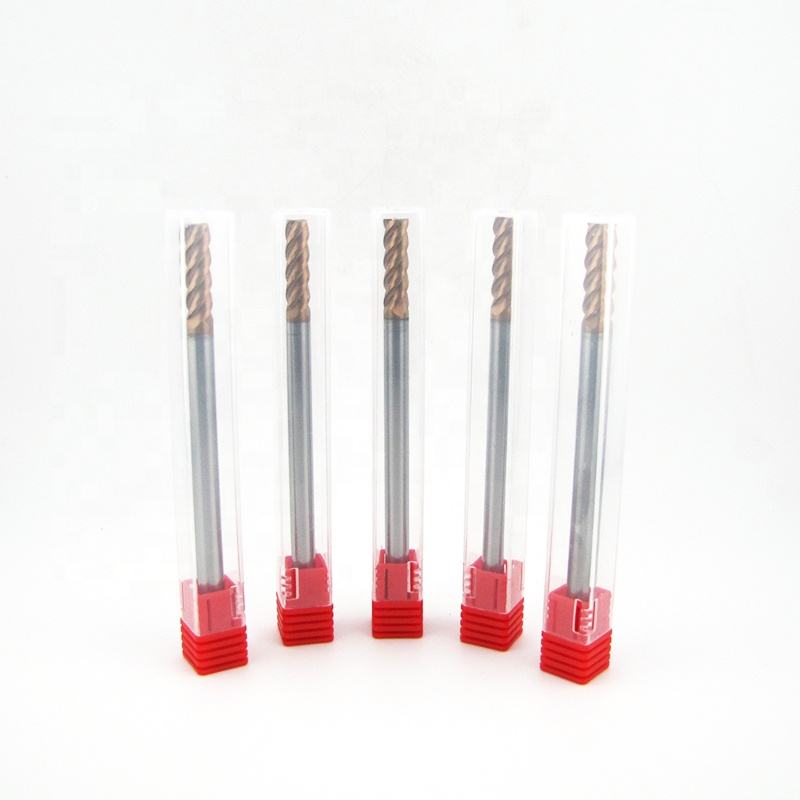

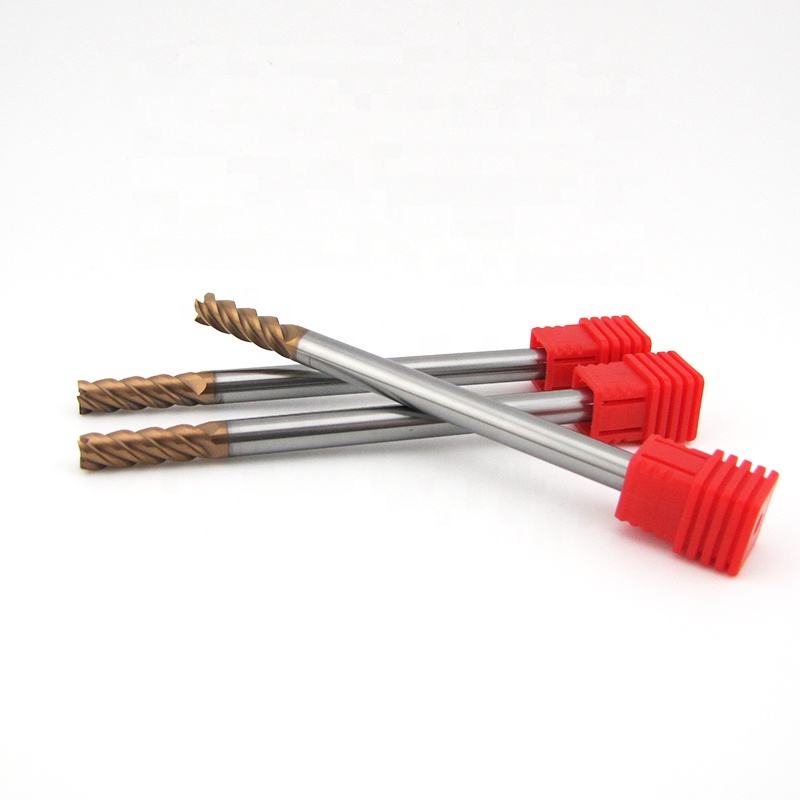

Industrial HRC68 Long Shank Flat End Mill (TIALXN Coated) – OEM Sizes
Premium 4-Flute Extended Reach End Mill for Quenched Steel (68HRC) – Customizable
Quick Specifications
| Product Name | OEM HRC68 Long Shank Flat End Mill (NANO TIALXN Coated) |
|---|---|
| Milling Cutter Type | 4-Flute Flat End Mill (Extended Shank / Long Reach) |
| Material | Premium Solid Tungsten Steel (Solid Carbide) |
| Tool Hardness Rating | HRC68 (For Quenched & Ultra-Hard Steels) |
| Coating | Advanced NANO TIALXN Coating |
| Flutes | 4 Flutes (Optimized for Deep Cavity Milling) |
| Diameter Range | Standard D3.0 - D12.0mm (Fully Customizable to OEM Specs) |
| Overall Length | Extended Reach 75mm - 150mm (Custom Lengths Supported) |
| Application | Pre-Hardened Steel, Quenched Steel (50HRC~68HRC), Cast Iron |
| Brand Name | Xiaoman Tools |
| Customized Support | 100% OEM/ODM/OBM (Custom Dimensions, Laser Etching, Packaging) |
- Factory Direct Pricing
- Strict Standard QC
- Support OEM / Custom Packaging
Want to know the MOQ and latest price?
Product Details
Industrial HRC68 Long Shank Flat End Mill (NANO TIALXN Coated)
Extended Reach Meets Extreme Hardness for Deep Cavity Machining
Overcome the most demanding deep-pocket milling challenges with Xiaoman Tools' Extended Shank Solid Carbide Flat End Mills. Engineered with a specialized long-reach design (up to 150mm overall length), these 4-flute cutters provide the necessary clearance to machine deep mold cavities without tool holder interference. Forged from an ultra-hard carbide matrix and shielded by a NANO TIALXN coating, they effortlessly shear through quenched and pre-hardened steels up to 68 HRC. As your dedicated manufacturing partner, we eliminate standard constraints, offering complete OEM customization for cutting diameters, shank lengths, and private label packaging to empower your wholesale brand.
Key Technical Advantages
- Extended Shank (Long Reach) Design: Specifically engineered with an elongated tool body (75mm to 150mm+) to safely and efficiently access deep pockets and complex mold geometries, minimizing the risk of spindle collision.
- 68HRC Extreme Machining Power: Manufactured from premium solid tungsten steel designed to withstand immense transverse rupture forces, ensuring stable, chatter-free milling on ultra-hard materials ranging from 50HRC to 68HRC.
- Advanced NANO TIALXN Coating: This high-performance thermal barrier drastically reduces cutting friction and prevents edge degradation caused by the massive heat generated during hard steel machining.
- High-Rigidity 4-Flute Geometry: The 4-flute design maximizes the core diameter, providing the crucial rigidity needed to prevent tool deflection when utilizing extended reach cutters.
- Limitless OEM Customization: Standard dimensions are just a starting point. Our advanced CNC grinding center is fully equipped to manufacture bespoke diameters, custom extra-long reaches, and apply your exclusive brand laser etching.
Technical Specifications
| Manufacturer: | Xiaoman Tools (Shanghai, China) |
| Material: | Premium Solid Tungsten Steel (Solid Carbide) |
| Milling Type: | Flat End Mill (Long Shank / Extended Reach) |
| Tool Hardness Rating: | HRC68 |
| High-Temp Coating: | NANO TIALXN Coating |
| Flute Count: | 4 Flutes |
| Dimensions (Dia & Length): | 100% Customizable (e.g., 75mm - 150mm+ lengths) |
| Target Applications: | Pre-Hardened Steel, Quenched Steel (50-68HRC), Cast Iron |
