High-Precision DC Series Spring Collet for Drawback Chucks – OEM
Premium SDC Slim Collet Series (DC06-DC12) for Deep Cavity Milling
Quick Specifications
| Product Name | OEM Precision DC/SDC Spring Collet (For Drawback Tool Holders) |
|---|---|
| Tool Type | Slim Spring Collet / Drawback Collet |
| Material | Premium SUJ2 Spring Steel (Deep Cryogenic Treatment) |
| Precision (TIR) | Ultra-High Precision ≤ 0.005mm |

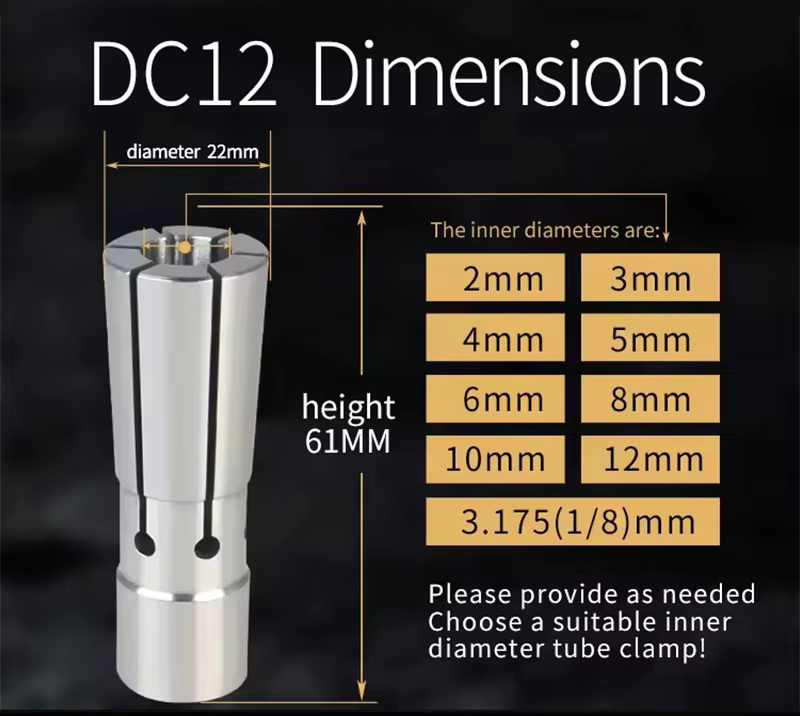

| Available Models | DC06, DC08, DC10, DC12 (Full inner diameter ranges) |
| Design Feature | Slim Profile, Rear-Pull Clamping Mechanism |
| Application | Deep Cavity Milling, High-Speed Precision Drilling & Routing |
| Brand Name | Xiaoman Tools |
| Manufacturer | Shanghai Daoge Xiaoman Tools Co., Ltd. |
| Customized Support | 100% OEM/ODM (Custom Bores, Laser Etching, Tube Packaging) |
- Factory Direct Pricing
- Strict Standard QC
- Support OEM / Custom Packaging
Want to know the MOQ and latest price?
Product Details

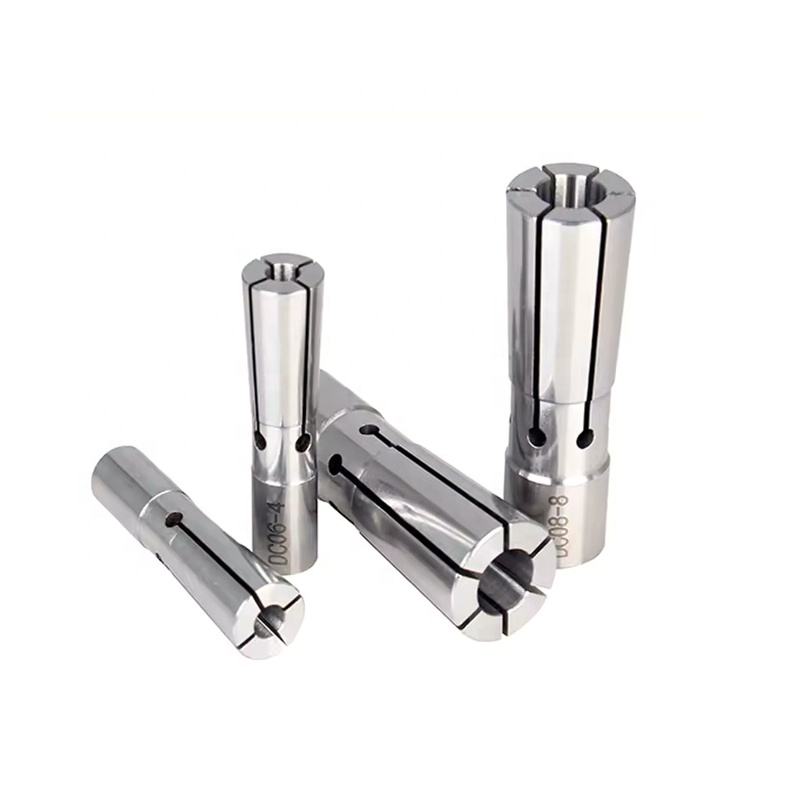

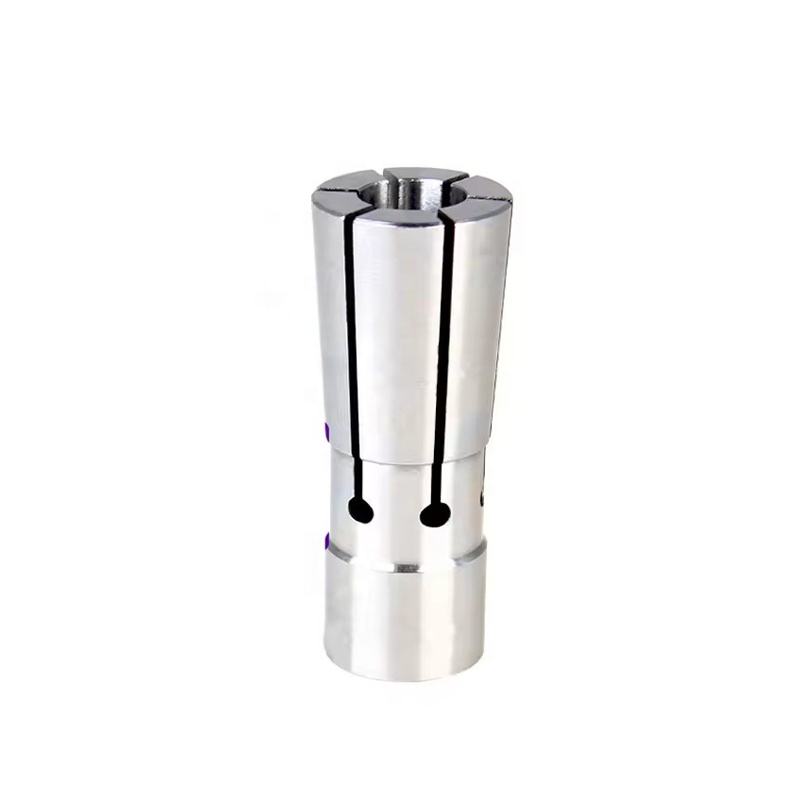

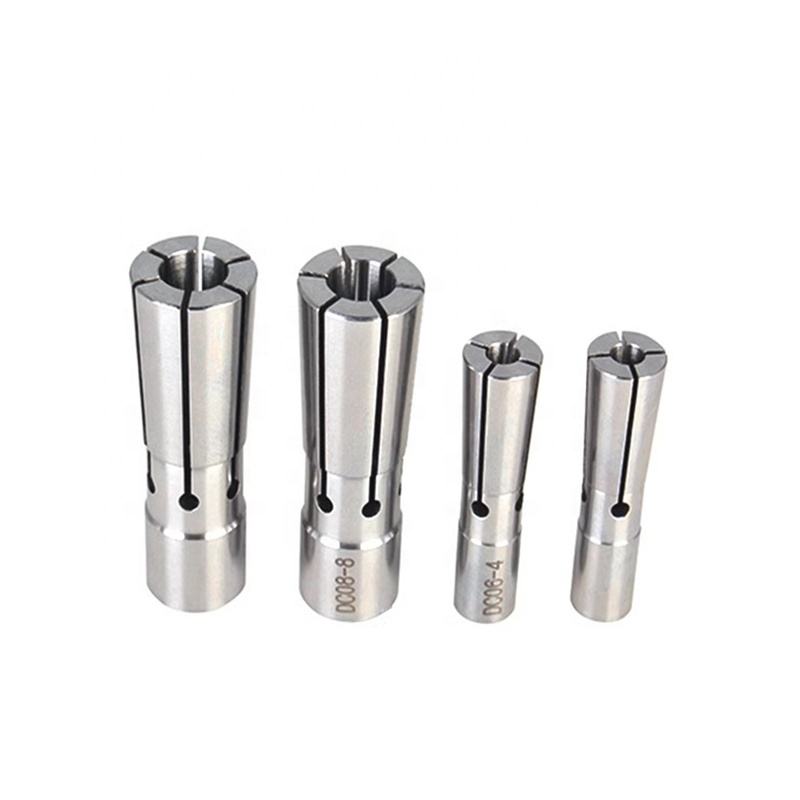

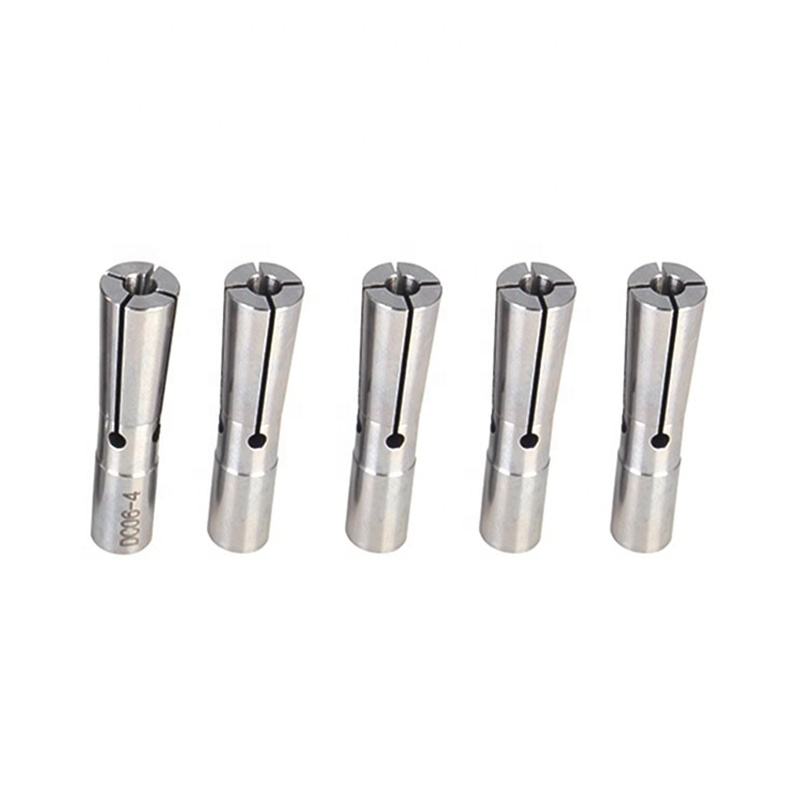

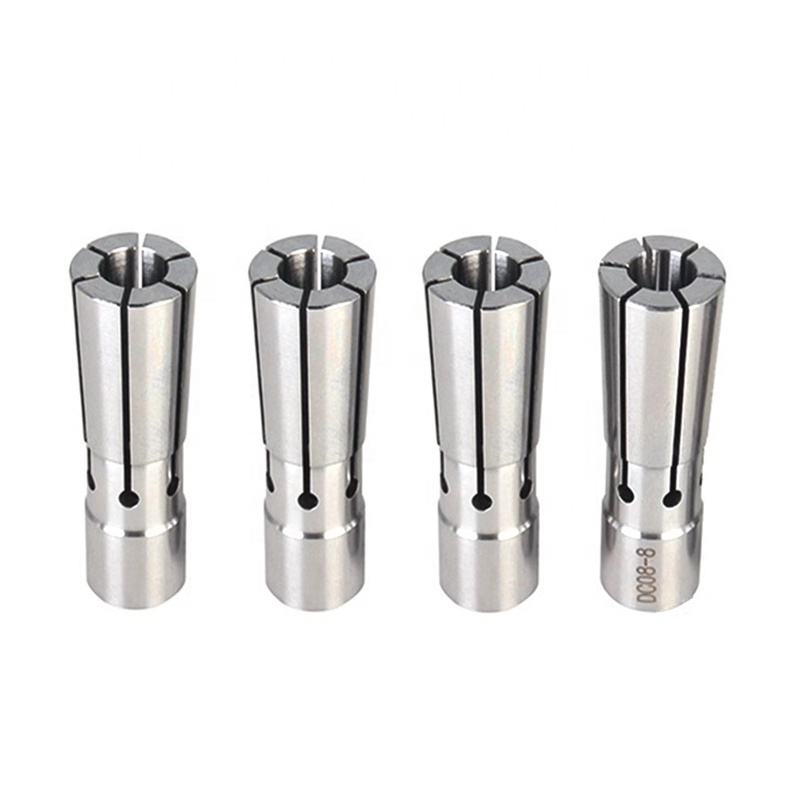

High-Precision DC Series Spring Collet for Drawback Chucks
Slim Profile and Ultimate Rigidity for Deep Cavity Precision Machining
When standard ER collet nuts cause interference in tight machining spaces, the DC/SDC Series Spring Collets from Shanghai Daoge Xiaoman Tools Co., Ltd. provide the ultimate solution. Engineered specifically for Drawback (Rear-Pull) Tool Holders, these collets feature a much slimmer profile, allowing your cutting tools to reach deep into mold cavities and complex geometries without collision. Forged from premium SUJ2 spring steel and ground to an ultra-high runout precision (TIR ≤ 0.005mm), the drawback mechanism pulls the collet inward, delivering immense, concentric clamping force. As a direct B2B manufacturing partner, we supply the complete range of DC06, DC08, DC10, and DC12 sizes, offering tailored OEM solutions including custom laser branding and bulk retail-ready tubes.
Key Technical Advantages

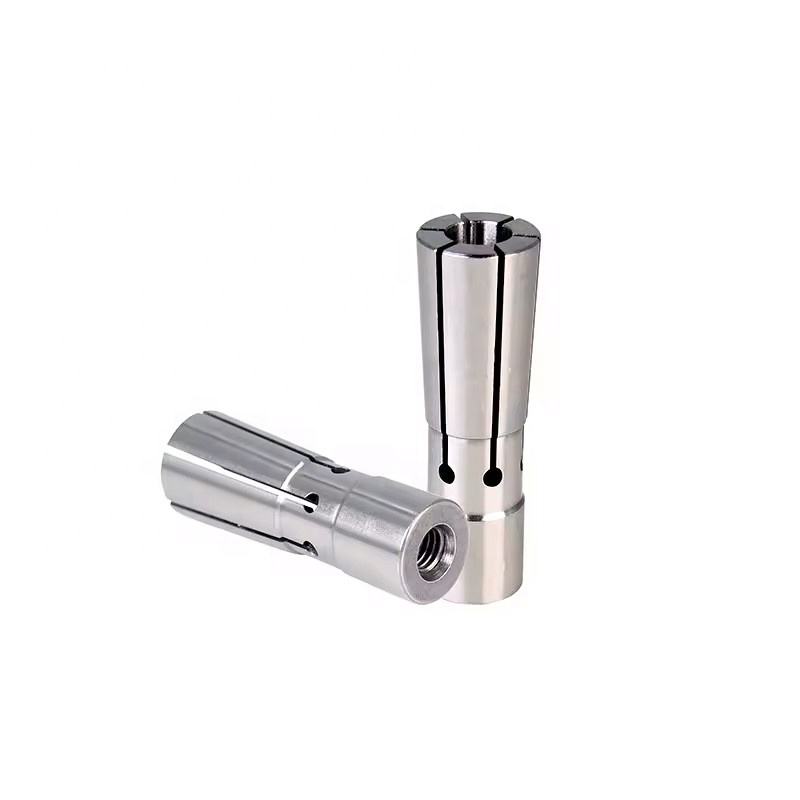

- Drawback Clamping Mechanism: Unlike standard collets clamped by a front nut, the rear-pull design seats the collet deeper into the holder. This drastically increases rigidity and reduces tool vibration during high-speed precision milling.
- Slim Interference-Free Profile: The absence of a bulky exterior clamping nut makes the DC series ideal for 5-axis machining and deep-pocket milling where tool holder clearance is critical.
- Ultra-High Precision (≤ 0.005mm): Precision-ground inside and out to achieve near-perfect concentricity, ensuring extended life for micro-end mills and high surface quality on molded parts.
- Premium Spring Steel (SUJ2): Heat-treated for optimal elasticity and wear resistance, allowing for thousands of tool change cycles without losing clamping pressure or accuracy.
- Complete OEM Branding: Don't sell generic parts. We offer bespoke wholesale manufacturing, applying your distinct company logo via precision laser etching and providing custom packaging solutions.
Technical Specifications
| Manufacturer: | Shanghai Daoge Xiaoman Tools Co., Ltd. |
| Collet System: | DC / SDC Series (Drawback Design) |
| Available Models: | DC06, DC08, DC10, DC12 (Full Size Range) |
| Material: | Premium SUJ2 Spring Steel |
| Runout Accuracy (TIR): | ≤ 0.005mm (High Precision) |
| Target Applications: | Deep Cavity Milling, 5-Axis Machining |
| OEM Service: | Active (Laser Brand Etching, Custom Tubes) |
