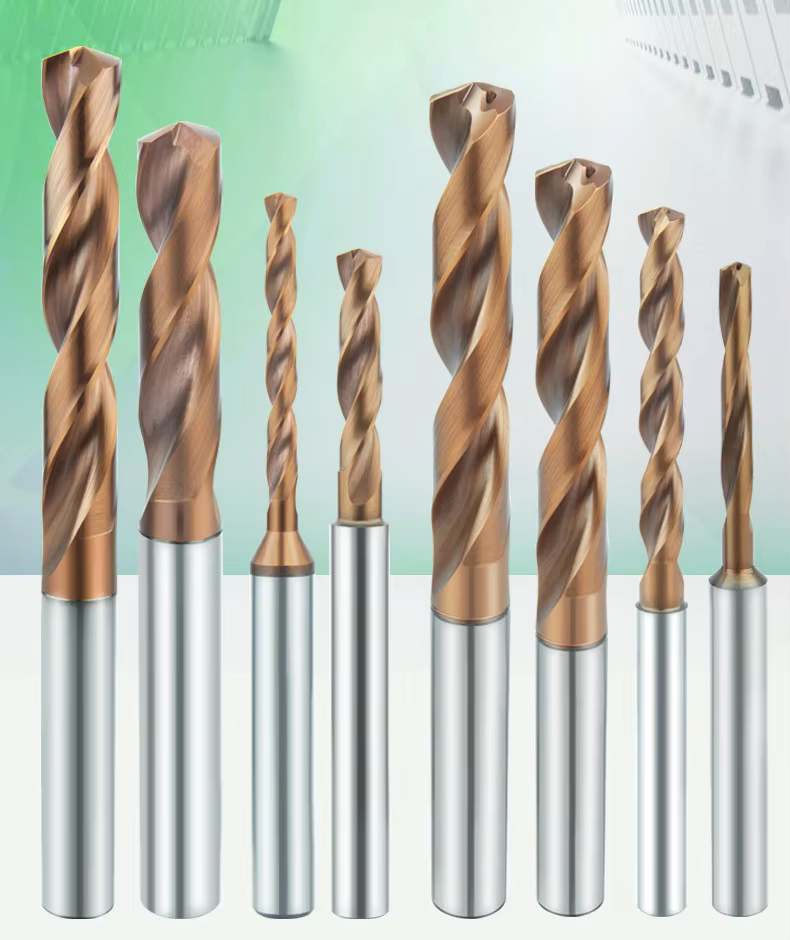

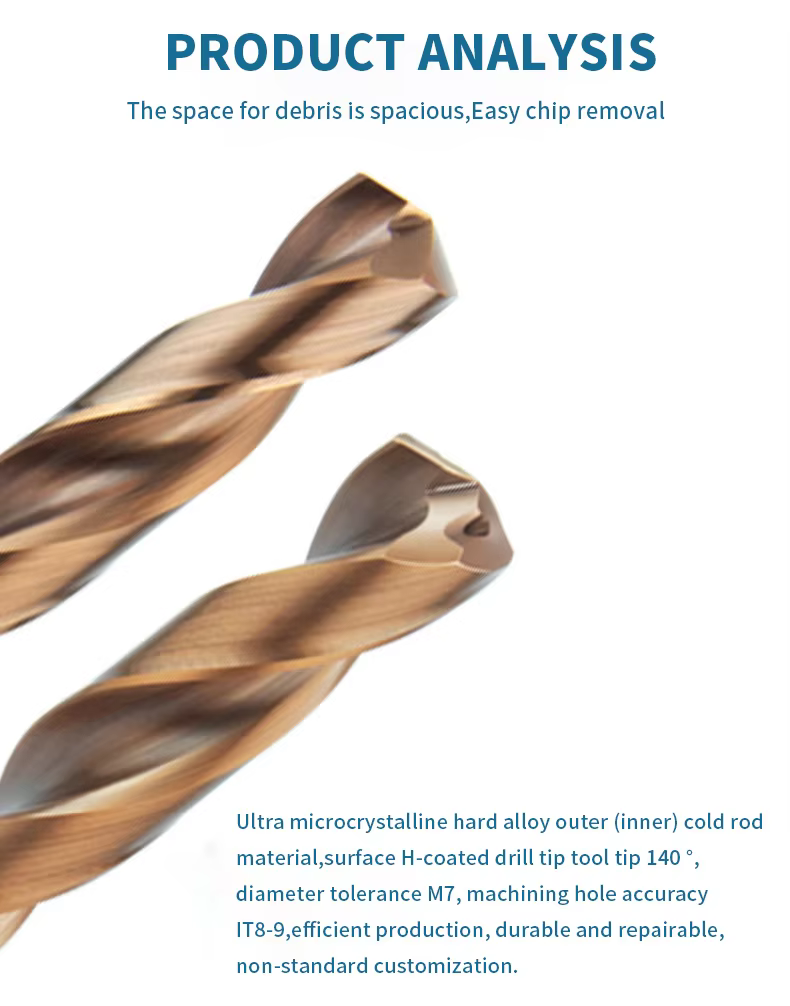

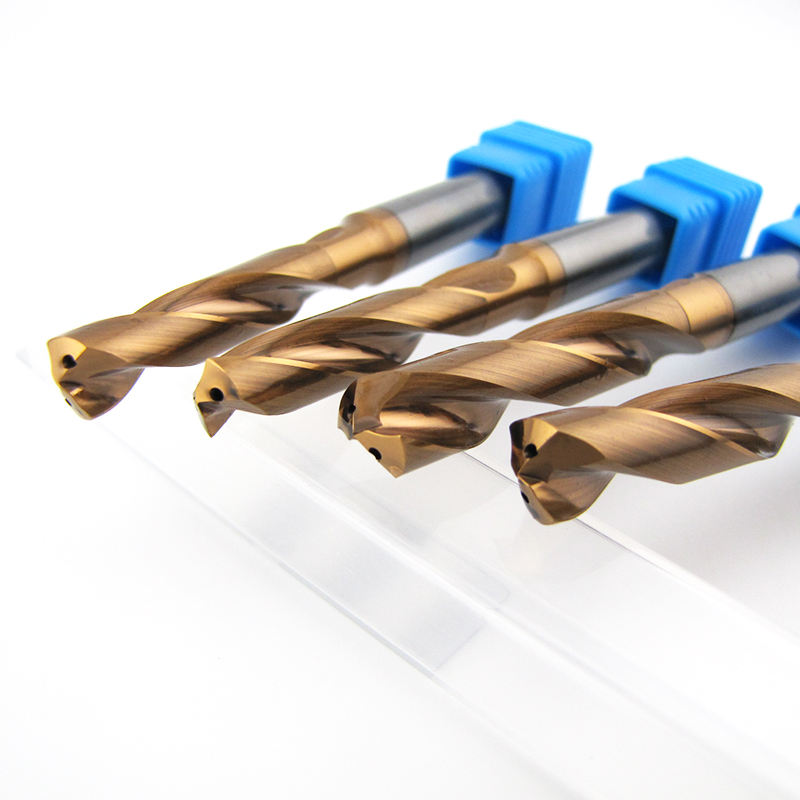

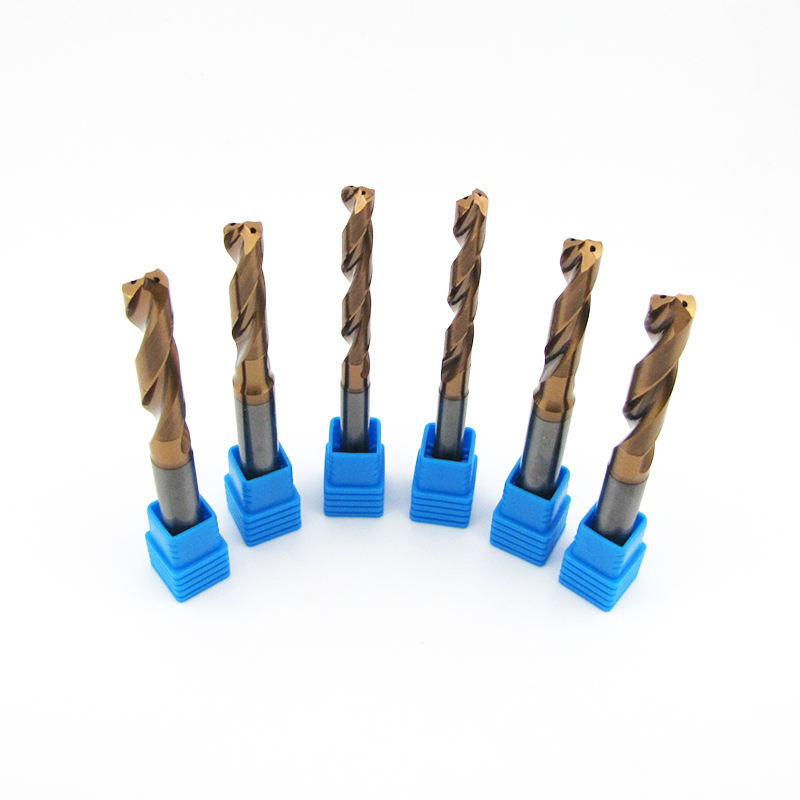

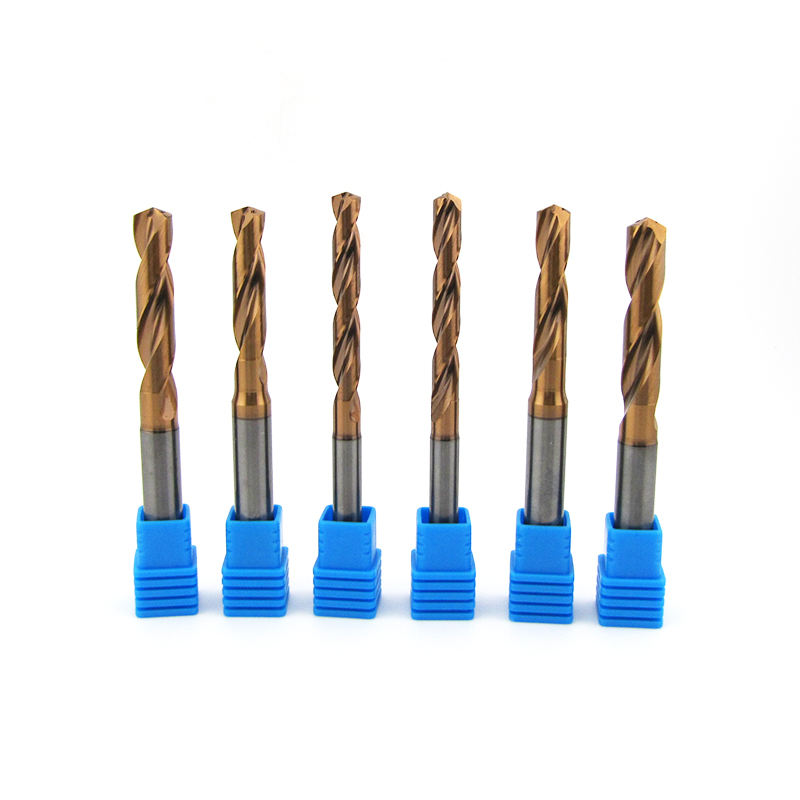

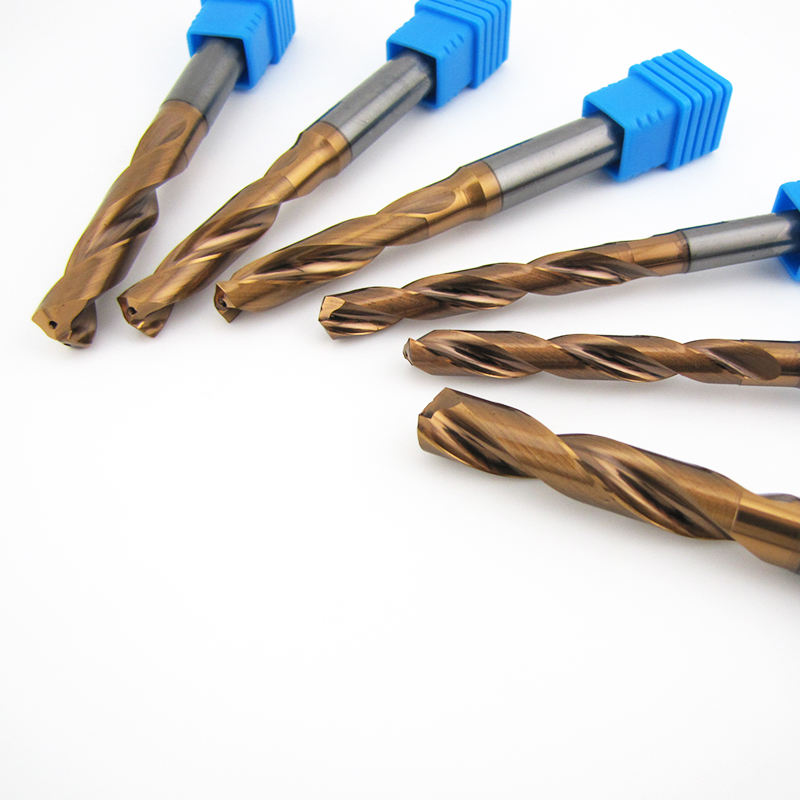

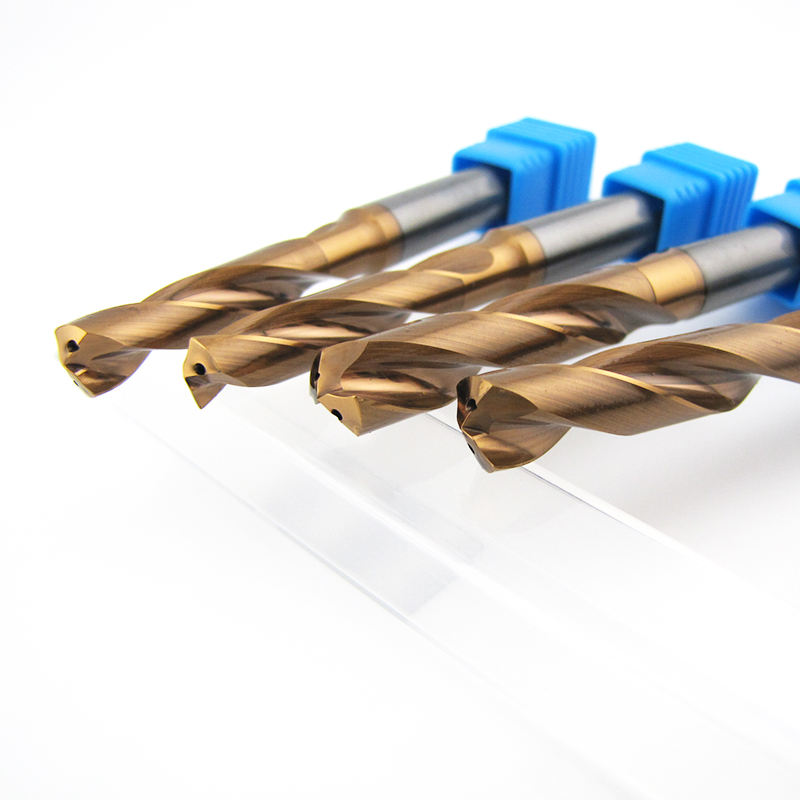

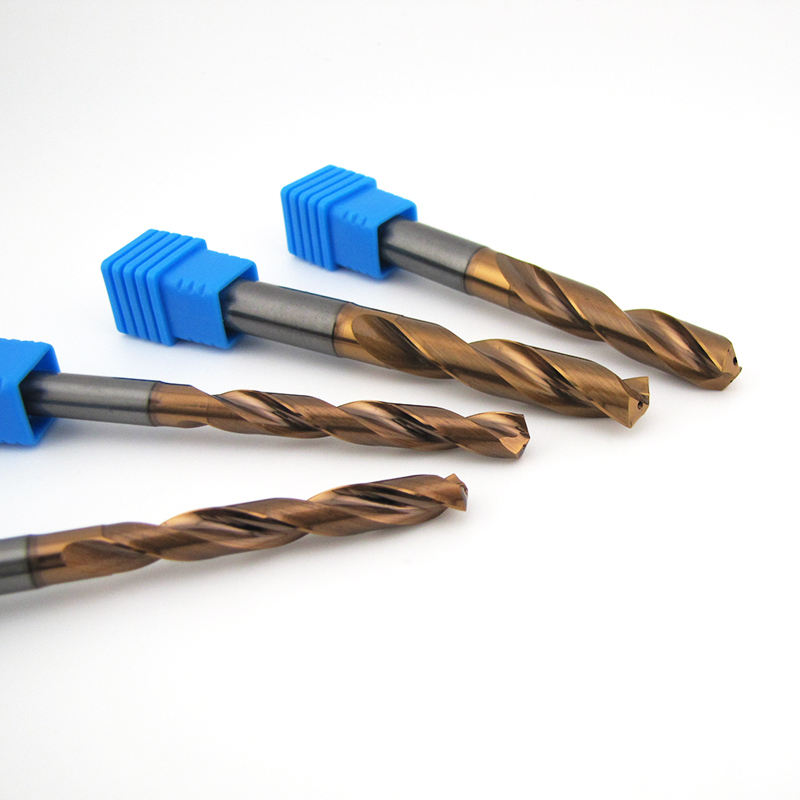

Industrial 3D/5D Solid Carbide Coolant-Through Drill Bit (HRC60, 140° Point)
Premium Tungsten Steel CNC Drill Bit with Internal Coolant (3D & 5D) – Bulk
Quick Specifications
| Product Name | OEM 3D/5D Solid Carbide Coolant-Through Drill Bit (140° Point, HRC60) |
|---|---|
| Tool Type | Internal Cooling CNC Tungsten Carbide Drill |
| Material | Premium Tungsten Steel Hard Alloy (Hardness: HRC 60) |
| Drilling Depth Capacity | Available in 3D and 5D (Depth-to-Diameter Ratios) |
| Cooling System | Dual Internal Coolant Channels (Through-Hole design) |
| Point Angle | 140° High-Feed Point (Self-centering, pilot-hole free) |
| Surface Coating | Advanced High-Temperature Bronze Coating (TiAlN equivalent) |
| Shank Design | Straight Shank (6mm - 14mm diameters available) |
| Target Application | CNC Machining: Cast iron, ductile iron, silicon aluminum, copper alloys, high-hardened steel |
| Brand Name | Xiaoman Tools |
| Manufacturer | Shanghai Daoge Xiaoman Tools Co., Ltd. |
| Customized Support | 100% OEM/ODM (Custom shank sizes, laser marking, protective plastic tube packaging) |
- Factory Direct Pricing
- Strict Standard QC
- Support OEM / Custom Packaging
Want to know the MOQ and latest price?
Product Details
Industrial 3D/5D Solid Carbide Coolant-Through Drill Bit (HRC 60)
Maximize CNC Productivity with Unstoppable High-Feed Deep Hole Drilling
Push your CNC machining centers to their absolute limits. The Coolant-Through Solid Carbide Drill Bits from Shanghai Daoge Xiaoman Tools Co., Ltd. are engineered for high-speed, continuous production in abrasive and hardened materials. Manufactured from ultra-premium Tungsten Steel Hard Alloy rated at HRC 60, these drills offer extraordinary rigidity and wear resistance. Available in precision 3D and 5D depth-to-diameter ratios, they are specifically designed to bore deep, accurate holes without the need for constant pecking. The integrated Internal Cooling Channels force high-pressure cutting fluid directly to the cutting zone, instantly blasting chips up the flutes and preventing catastrophic thermal buildup. Featuring an aggressive 140-degree Drill Tip Angle, this tool eliminates the need for pilot holes, allowing for rapid plunging into cast iron, ductile iron, high-silicon aluminum, and copper alloys. Supplied in protective plastic tubes, these bits are ready for global OEM distribution.
Key Technical Advantages
- Optimized 3D & 5D Geometries: Tailored flute lengths to match your exact machining depth requirements (3x or 5x the drill diameter). This maximizes tool rigidity and prevents deflection during deep-hole operations.

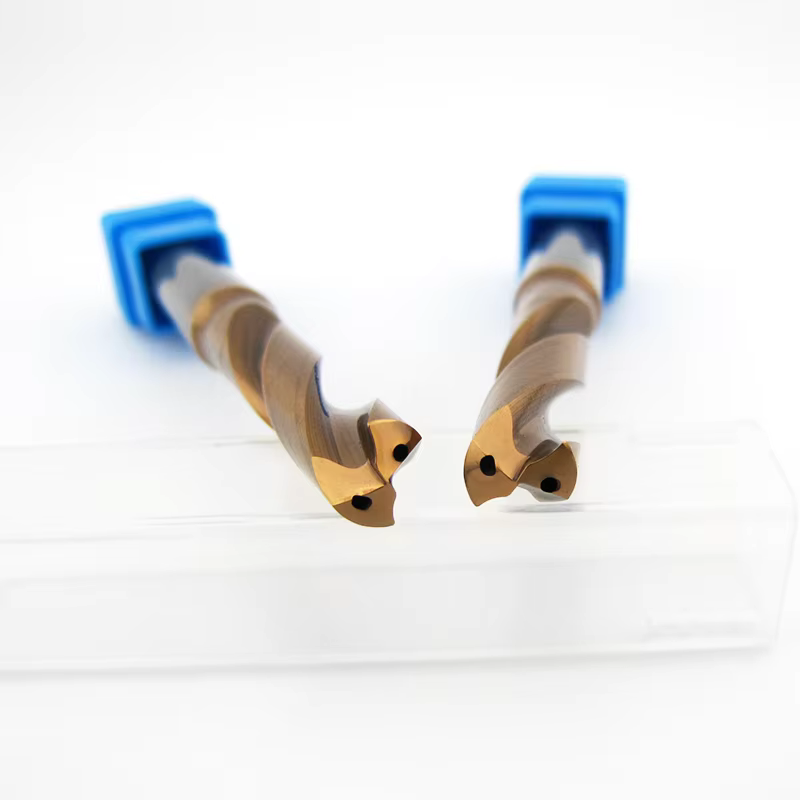

- Dual Internal Coolant Channels: Solves the biggest challenge in CNC deep drilling. Through-coolant design ensures immediate chip evacuation and extends tool life by keeping the cutting edges cool under heavy loads.
- 140° High-Feed Point Angle: The exceptionally flat 140-degree point is designed for rigid CNC setups. It provides excellent self-centering capabilities, distributing the cutting force evenly to allow for significantly higher feed rates.
- HRC 60 Tungsten Carbide Substrate: The micro-grain solid carbide foundation delivers incredible hardness, maintaining a razor-sharp edge even when machining tough, high-silicon metals that would rapidly degrade HSS tools.
- Advanced Thermal Coating: The specialized bronze-colored coating acts as a high-temperature shield, reducing friction and preventing material welding (built-up edge) during high-speed rotation.
Technical Specifications
| Manufacturer: | Shanghai Daoge Xiaoman Tools Co., Ltd. |
| Tool Type: | Internal Coolant CNC Carbide Drill |
| Drilling Depth: | 3D and 5D Ratios Available |
| Material Hardness: | Tungsten Steel Alloy (HRC 60) |
| Point Angle: | 140° (Self-Centering) |
| Available Diameters: | D3.0mm to D13.0mm (Customizable) |
| OEM Service: | Active (Laser Engraving, Plastic Tube Packaging) |
