3D/5D/8D/12D Interchangeable Head Center Spade Cutting Tool Crown Drill Cutter Holder for CNC Drilling Insert Tools Processing
Maximize CNC Uptime and Slash Tooling Costs
- Factory-direct pricing
- OEM / ODM & private label
- Flexible MOQ, trial orders OK
- Quote within 24 hours
Include your target quantity and destination port for the fastest quote.
Specifications
| Coating | AlTin |
|---|---|
| Material | Tungsten Carbide |

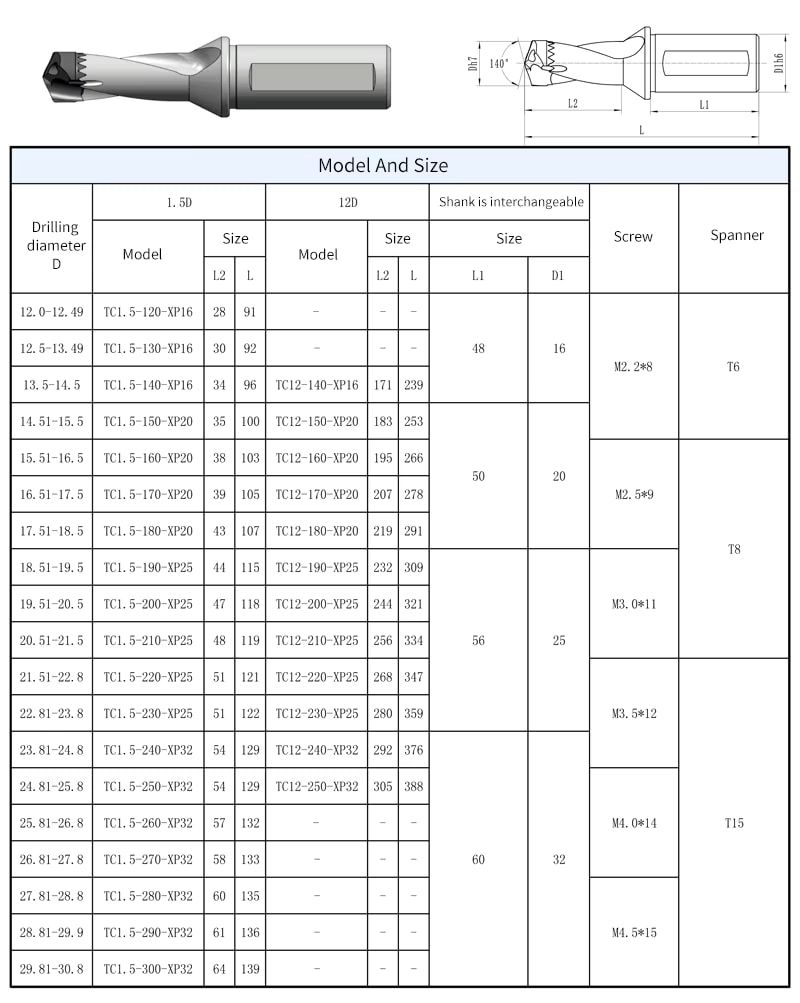

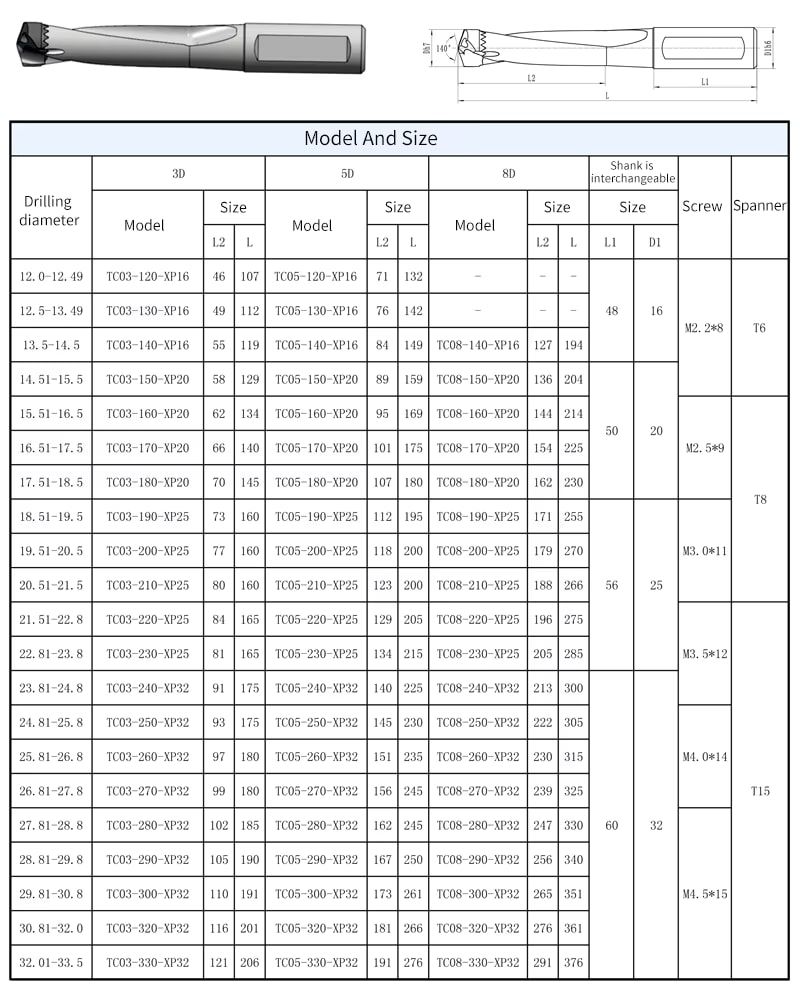

| Model Number | 3D 5D 8D 12D |
| Milling Type | Exchangeable-Tip Drills |
| Drilling Depth | 3D/5D/8D/12D |
| Applicable Equipment | CNC Machine |
| Feature | High precision, long lifespan |
| Application | Drill hole |
| Finish | Longer Life TiCN |
Why buyers pick this one

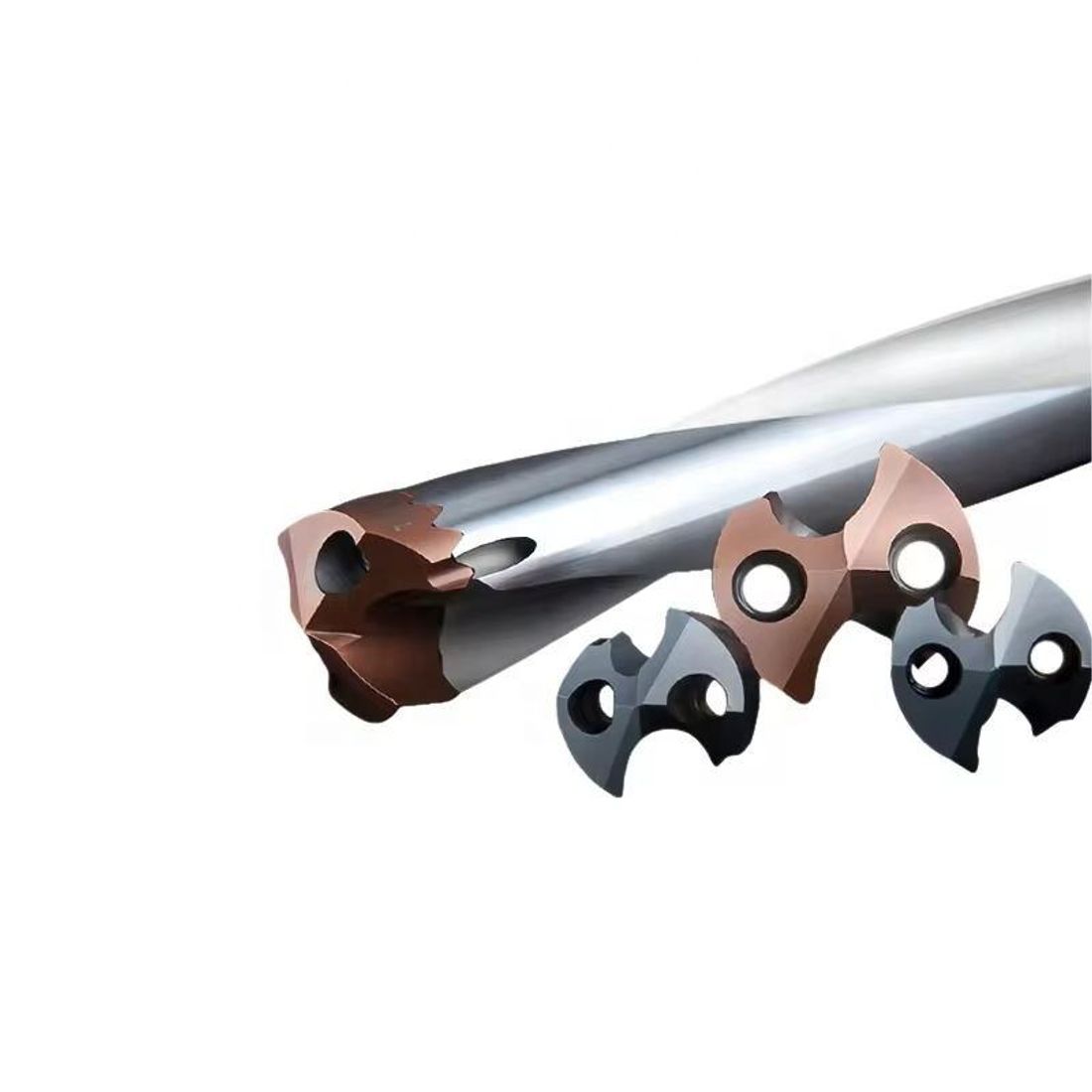

- Premium Carbide Inserts
- The replaceable tips are crafted from ultra-fine grain tungsten carbide, ensuring high precision and aggressive penetration rates.
- Advanced Coating Technology
- Featuring proprietary AlTiN and TiCN coatings, these drill tips deliver exceptional heat resistance and an extended lifespan even under severe CNC conditions.
- Rigid Steel Body with Flatted Shank
- The high-strength steel drill body features a precision Weldon (flatted) shank, guaranteeing maximum clamping force and eliminating rotational slip during heavy-duty drilling.
- Comprehensive Depth Range
- Available in versatile length-to-diameter ratios from standard 3D up to extreme deep-hole 12D applications.
Product detail
