Industrial 1/4" Hex Combination Drill and Tap Bit Set (Titanium, M3-M10)
Premium 6Pcs HSS Drill & Tap Combo Set for Sheet Metal – Bulk
Quick Specifications
| Product Name | OEM 6-Piece Titanium Combination Drill and Tap Bit Set (M3-M10) |
|---|---|
| Tool Type | Combination Drill & Tap Bit (3-in-1 Tool) |
| Material | High-Speed Steel (HSS) with Titanium (TiN) Coating |
| Shank Design | Standard 1/4" (6.35mm) Quick-Change Hex Shank |

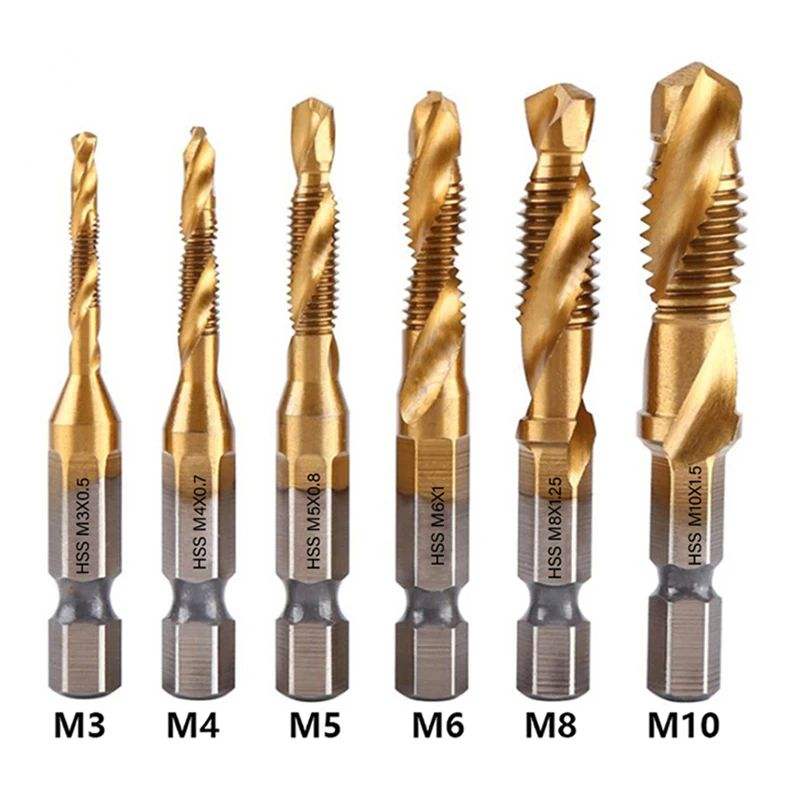

| Metric Sizes Included | M3x0.5, M4x0.7, M5x0.8, M6x1.0, M8x1.25, M10x1.5 |
| Functions | Drilling, Tapping, and Deburring/Countersinking in one pass |
| Target Application | Sheet Metal (up to 3mm / 10 Gauge), Aluminum, Copper, Plastic |
| Brand Name | Xiaoman Tools |
| Manufacturer | Shanghai Daoge Xiaoman Tools Co., Ltd. |
| Customized Support | 100% OEM/ODM (Custom plastic box, Uncoated/Silver options available) |
- Factory Direct Pricing
- Strict Standard QC
- Support OEM / Custom Packaging
Want to know the MOQ and latest price?
Product Details
Industrial 6-Piece Combination Drill and Tap Bit Set (Titanium Coated)
Drill, Tap, and Deburr in a Single Pass for Maximum Efficiency
Dramatically reduce assembly time for your electrical and fabrication contractors. The Combination Drill and Tap Bit Set from Shanghai Daoge Xiaoman Tools Co., Ltd. is the ultimate 3-in-1 productivity tool. Designed for use in power drills and impact drivers, these bits allow operators to drill the hole, cut the threads, and deburr/countersink the edge all in one smooth operation. Crafted from premium High-Speed Steel (HSS) and enhanced with a heat-resistant Titanium Nitride (TiN) coating, they offer superior wear resistance and extended tool life. This 6-piece metric set covers the most common fastener sizes (M3 to M10) and features a universal 1/4" Quick-Change Hex Shank to prevent slipping in the chuck. Specifically engineered for fast-paced work on sheet metal, aluminum profiles, copper, and plastics (recommended thickness up to 3mm / 10-gauge), this set is an indispensable addition to any professional toolkit.
Key Technical Advantages
- 3-in-1 Functionality: The self-centering split point drills the hole, the spiral flutes tap the thread, and the tapered shoulder countersinks the edge. This eliminates the need to constantly switch between drill bits and hand taps, saving immense labor time.
- Titanium Nitride (TiN) Coating: The striking gold finish isn't just for show. The TiN coating significantly reduces friction and prevents chips from welding to the cutting edge, allowing the tap to run cooler and last longer. (Also available in uncoated bright finish).
- 1/4" Quick-Change Shank: Perfectly integrated with the modern contractor's workflow. The hex shank snaps instantly into impact drivers and magnetic bit holders, ensuring zero spin-out under load.
- Complete Metric Coverage: Includes precision-milled pitches for M3x0.5, M4x0.7, M5x0.8, M6x1.0, M8x1.25, and M10x1.5, covering all standard electrical and structural panel fasteners.
- Optimized for Sheet Metal: Engineered specifically for tapping through-holes in soft metals and thin-gauge materials (up to 3mm), preventing tap breakage commonly seen with improper application.
Technical Specifications
| Manufacturer: | Shanghai Daoge Xiaoman Tools Co., Ltd. |
| Tool Type: | Combination Drill and Tap (3-in-1) |
| Material: | High-Speed Steel (HSS) |
| Coating: | Titanium (TiN) Coated |
| Shank Size: | 1/4" (6.35mm) Hex Shank |
| Ideal Material Thickness: | Up to 3mm (10 Gauge Sheet Metal) |
| OEM Service: | Active (Custom Case, Bulk Supply) |
